ACTIVE
Sample rate (max) (Msps) |
20 |
Resolution (Bits) |
10 |
Number of input channels |
1 |
Interface type |
Parallel CMOS |
Analog input BW (MHz) |
100 |
Features |
Low Power |
Rating |
Catalog |
Peak-to-peak input voltage range (V) |
1, 2 |
Power consumption (typ) (mW) |
49 |
Architecture |
Pipeline |
SNR (dB) |
62 |
ENOB (Bits) |
8 |
SFDR (dB) |
49 |
Operating temperature range (°C) |
-40 to 85 |
Input buffer |
No |

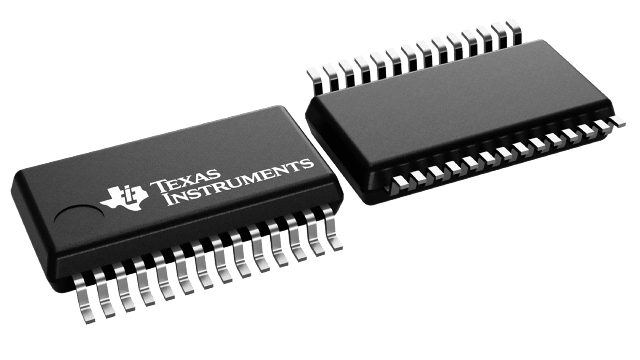

SSOP (DB)-28-79.56 mm² 10.2 x 7.8
The ADS901 is a high-speed pipelined analog-to-digital converter that operates from a +3V power supply. This complete converter includes a wide bandwidth track/hold and a 10-bit quantizer. The full scale input range is set by external references.
The ADS901 employs digital error correction techniques to provide excellent differential linearity for demanding imaging applications. Its low distortion and high SNR give the extra margin needed for telecommunications, video and test instrumentation applications. The ADS901 is available in an SSOP-28 package.
