ACTIVE
Resolution (Bits) |
16 |
Sample rate (max) (ksps) |
1000 |
Number of input channels |
2 |
Interface type |
SPI |
Architecture |
SAR |
Input type |
Pseudo-Differential, Single-ended |
Multichannel configuration |
Simultaneous Sampling |
Rating |
Catalog |
Reference mode |
External, Internal |
Input voltage range (max) (V) |
5.5 |
Input voltage range (min) (V) |
0 |
Features |
Small Size |
Operating temperature range (°C) |
-40 to 125 |
Power consumption (typ) (mW) |
60 |
Analog supply voltage (min) (V) |
4.5 |
Analog supply voltage (max) (V) |
5.5 |
SNR (dB) |
88 |
Digital supply (min) (V) |
1.65 |
Digital supply (max) (V) |
5.5 |

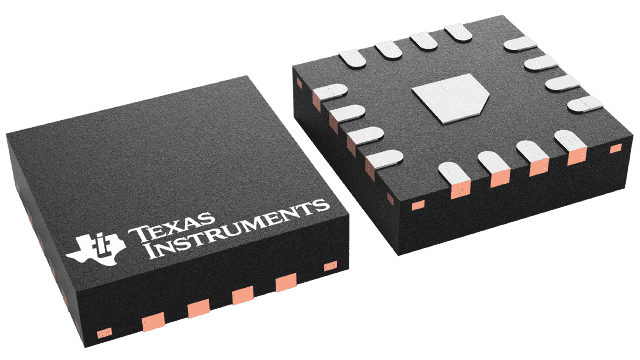

WQFN (RTE)-16-9 mm² 3 x 3

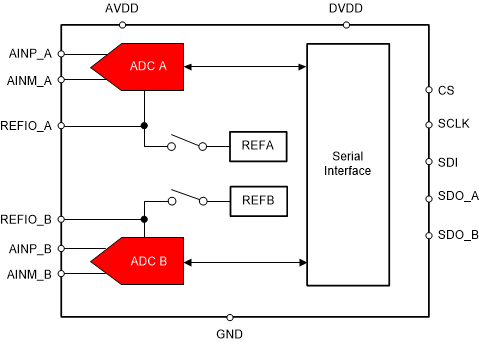

The ADS8355 is a dual, high-speed, simultaneous-sampling, analog-to-digital converter (ADC) that supports single-ended and pseudo-differential analog inputs.
The device supports a flexible serial interface that can operate over a wide power-supply voltage range. The flexible interface enables easy communication with a large variety of host controllers. Power consumption for a given throughput can be optimized by using the two low-power modes supported by the device. The device is fully specified over the extended industrial temperature range (–40°C to +125°C) and is available in a 16-pin WQFN (3-mm × 3-mm) package.
