0
ACTIVE
Resolution (Bits) |
12 |
Sample rate (max) (ksps) |
3.3 |
Number of input channels |
4 |
Interface type |
I2C |
Architecture |
Delta-Sigma |
Input type |
Differential, Single-ended |
Multichannel configuration |
Multiplexed |
Rating |
Catalog |
Reference mode |
Internal |
Input voltage range (max) (V) |
3.6 |
Input voltage range (min) (V) |
0 |
Features |
Comparator, Oscillator, PGA |
Operating temperature range (°C) |
-40 to 125 |
Power consumption (typ) (mW) |
0.3 |
Analog supply voltage (min) (V) |
2 |
Analog supply voltage (max) (V) |
3.6 |
Digital supply (min) (V) |
2 |
Digital supply (max) (V) |
3.6 |
DSBGA (YCJ)-12-1.471168 mm² 1.448 x 1.016

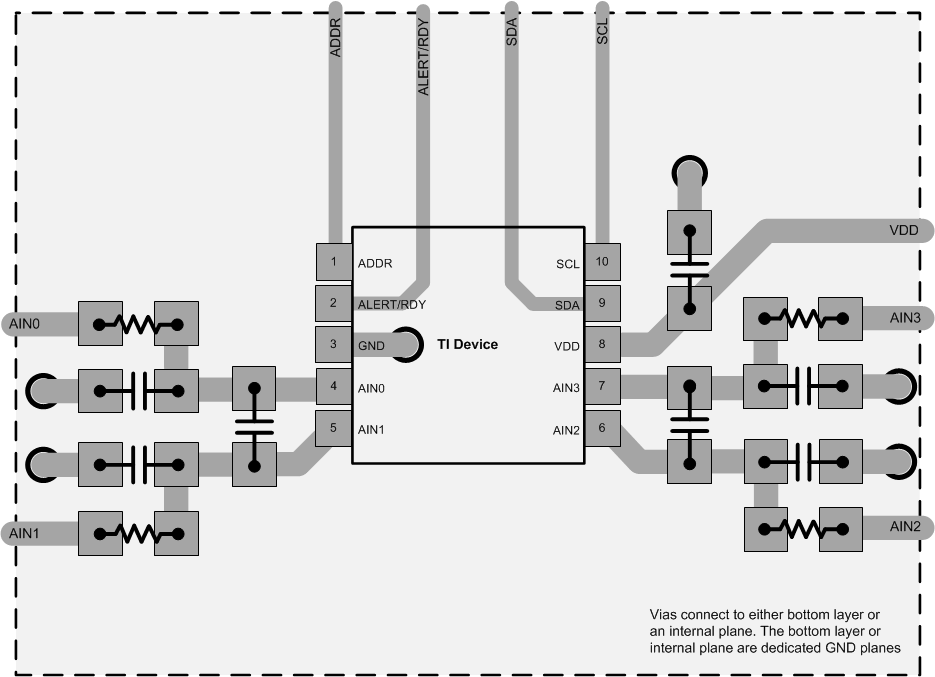

The ADS1014L and ADS1015L (ADS101xL) are precision, low-power, 12-bit, I2C-compatible, analog-to-digital converters (ADCs) offered in ultra-small, 12-pin DSBGA and a 10-pin VSSOP packages. The ADS101xL incorporate a low-drift voltage reference and an oscillator. The ADS101xL also incorporate a programmable gain amplifier (PGA) and a digital comparator. These features, along with the device wide operating supply range, are useful for power- and space-constrained, sensor measurement applications.
The ADS101xL perform conversions at data rates up to 3300 samples per second (SPS). The PGA offers input ranges from ±256 mV to ±6.144 V, allowing precise large- and small-signal measurements. The ADS1015L features an input multiplexer (MUX) that allows two differential or four single-ended input measurements. Use the digital comparator in the ADS101xL for under- and overvoltage detection.
