CC2595
  • CC2595
  • CC2595

CC2595

ACTIVE

RF Front-End Transmit Power Amplifier for 2.4GHz ISM Band Systems

Texas Instruments CC2595 Product Info

1 April 2026 4

Parameters

Type

RF Gain Block

Frequency (min) (MHz)

2400

Frequency (max) (MHz)

2483.5

Gain (typ) (dB)

25

Noise figure (typ) (dB)

3.1

P1dB (typ) (dBm)

17

Frequency of harmonic distortion measurement (Hz)

2500000000

Supply voltage (V)

3

Current consumption (mA)

98

Power consumption (typ) (W)

0.294

Operating temperature range (°C)

-40 to 85

Rating

Catalog

Output enable

Yes

Package

VQFN (RGT)-16-9 mm² 3 x 3

Features

  • Low Cost and Small Package
  • Very Few External Components
  • 2.0-V to 3.6-V Operation
  • Less Than 1-µA Current Consumption in Power Down Mode
  • Low Transmit Current Consumption
  • 98 mA at 3 V for +20.7 dBm Out (PAE = 40%)
  • RoHS Compliant 3- × 3-mm QFN-16 Package

  • Low Cost and Small Package
  • Very Few External Components
  • 2.0-V to 3.6-V Operation
  • Less Than 1-µA Current Consumption in Power Down Mode
  • Low Transmit Current Consumption
  • 98 mA at 3 V for +20.7 dBm Out (PAE = 40%)
  • RoHS Compliant 3- × 3-mm QFN-16 Package

Description

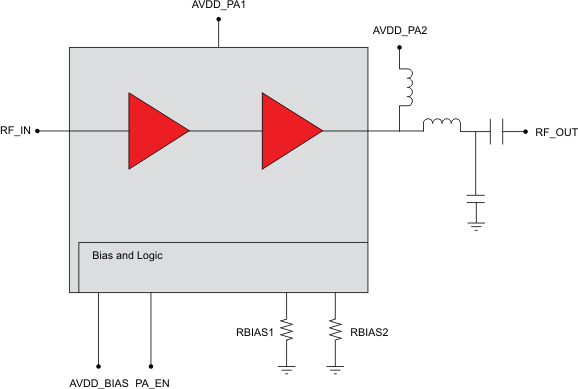

CC2595 is a PA solution that extends the range of any Zigbee or Bluetooth transceiver. It is a cost-effective and high performance RF front end for low-power and low-voltage wireless applications in the 2.4-GHz band. Its single-ended RF input and output make it compatible with any manufacturer’s transceiver if appropriate external parts are used. When a transmit/receive (T/R) switch and a balun are used, it can interface with existing and future CC24XX and CC25XX transceiver products. CC2595 extends the link budget by providing a power amplifier for improved output power. It is highly effective for high (+20 dBm) output power making it suitable for battery-operated systems. CC2595 contains PA and RF-matching for simple design of high performance wireless applications. It is packaged in a 3- × 3-mm, 16-lead QFN package with exposed paddle.
