ADC16V130
  • ADC16V130
  • ADC16V130
  • ADC16V130
  • ADC16V130

ADC16V130

ACTIVE

16-Bit, 130-MSPS Analog-to-Digital Converter (ADC) Key Specifications Key Specifications

Texas Instruments ADC16V130 Product Info

1 April 2026 0

Parameters

Sample rate (max) (Msps)

130

Resolution (Bits)

16

Number of input channels

1

Interface type

Parallel LVDS

Analog input BW (MHz)

1400

Features

High Performance

Rating

Catalog

Peak-to-peak input voltage range (V)

2.4

Power consumption (typ) (mW)

755

Architecture

Pipeline

SNR (dB)

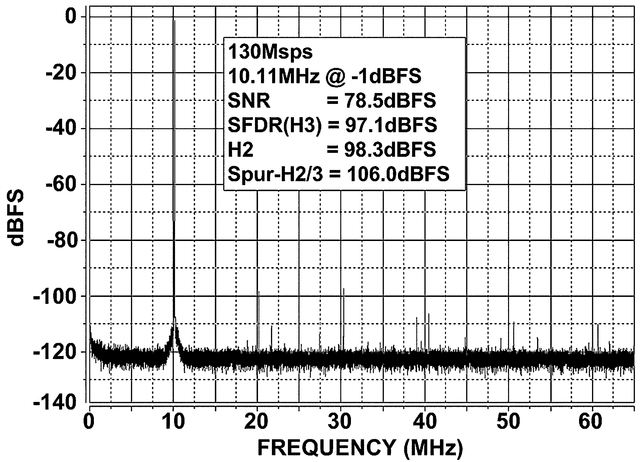

78.5

ENOB (Bits)

12.7

SFDR (dB)

95.5

Operating temperature range (°C)

-40 to 85

Input buffer

No

Package

WQFN (NKD)-64-81 mm² 9 x 9

Features

  • Dual Supplies: 1.8V and 3.0V Operation
  • On Chip Automatic Calibration During Power-Up
  • Low Power Consumption
  • Multi-Level Multi-Function Pins for CLK/DF and PD
  • Power-Down and Sleep Modes
  • On Chip Precision Reference and Sample-and-Hold Circuit
  • On Chip Low Jitter Duty-Cycle Stabilizer
  • Offset Binary or 2's Complement Data Format
  • Full Data Rate LVDS Output Port

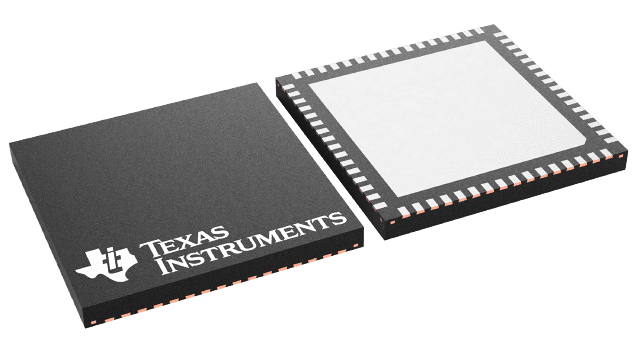

  • 64-pin WQFN Package (9x9x0.8, 0.5mm Pin-Pitch)

Key Specifications

  • High IF Sampling Receivers
  • Multi-carrier Base Station Receivers
    • GSM/EDGE, CDMA2000, UMTS, LTE, and WiMax
  • Test and Measurement Equipment
  • Communications Instrumentation
  • Data Acquisition
  • Portable Instrumentation

All trademarks are the property of their respective owners.

  • Dual Supplies: 1.8V and 3.0V Operation
  • On Chip Automatic Calibration During Power-Up
  • Low Power Consumption
  • Multi-Level Multi-Function Pins for CLK/DF and PD
  • Power-Down and Sleep Modes
  • On Chip Precision Reference and Sample-and-Hold Circuit
  • On Chip Low Jitter Duty-Cycle Stabilizer
  • Offset Binary or 2's Complement Data Format
  • Full Data Rate LVDS Output Port
  • 64-pin WQFN Package (9x9x0.8, 0.5mm Pin-Pitch)

Key Specifications

  • High IF Sampling Receivers
  • Multi-carrier Base Station Receivers
    • GSM/EDGE, CDMA2000, UMTS, LTE, and WiMax
  • Test and Measurement Equipment
  • Communications Instrumentation
  • Data Acquisition
  • Portable Instrumentation

All trademarks are the property of their respective owners.

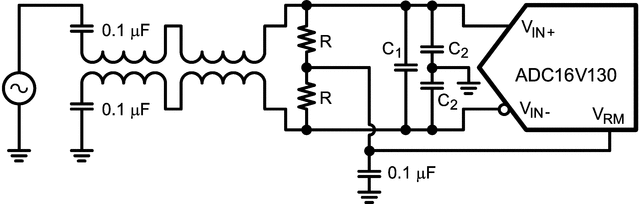

Description

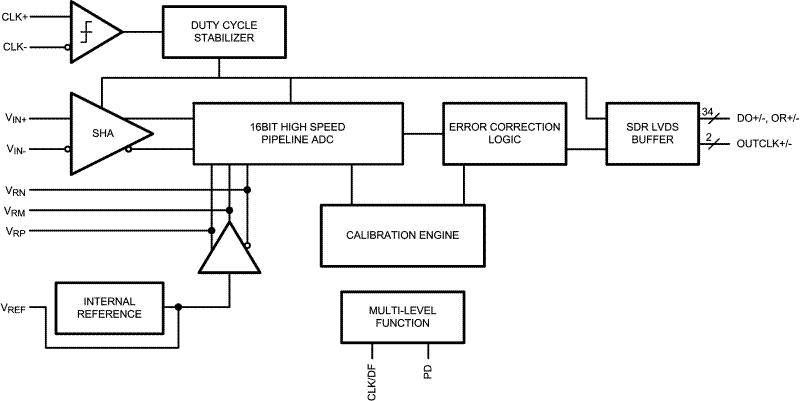

The ADC16V130 is a monolithic high performance CMOS analog-to-digital converter capable of converting analog input signals into 16-bit digital words at rates up to 130 Mega Samples Per Second (MSPS). This converter uses a differential, pipelined architecture with digital error correction and an on-chip sample-and-hold circuit to minimize power consumption and external component count while providing excellent dynamic performance. Automatic power-up calibration enables excellent dynamic performance and reduces part-to-part variation, and the ADC16V130 could be re-calibrated at any time by asserting and then de-asserting power-down. An integrated low noise and stable voltage reference and differential reference buffer amplifier easies board level design. On-chip duty cycle stabilizer with low additive jitter allows wide duty cycle range of input clock without compromising its dynamic performance. A unique sample-and-hold stage yields a full-power bandwidth of 1.4 GHz. The digital data is provided via full data rate LVDS outputs – making possible the 64-pin, 9mm x 9mm WQFN package. The ADC16V130 operates on dual power supplies +1.8V and +3.0V with a power-down feature to reduce the power consumption to very low levels while allowing fast recovery to full operation.

The ADC16V130 is a monolithic high performance CMOS analog-to-digital converter capable of converting analog input signals into 16-bit digital words at rates up to 130 Mega Samples Per Second (MSPS). This converter uses a differential, pipelined architecture with digital error correction and an on-chip sample-and-hold circuit to minimize power consumption and external component count while providing excellent dynamic performance. Automatic power-up calibration enables excellent dynamic performance and reduces part-to-part variation, and the ADC16V130 could be re-calibrated at any time by asserting and then de-asserting power-down. An integrated low noise and stable voltage reference and differential reference buffer amplifier easies board level design. On-chip duty cycle stabilizer with low additive jitter allows wide duty cycle range of input clock without compromising its dynamic performance. A unique sample-and-hold stage yields a full-power bandwidth of 1.4 GHz. The digital data is provided via full data rate LVDS outputs – making possible the 64-pin, 9mm x 9mm WQFN package. The ADC16V130 operates on dual power supplies +1.8V and +3.0V with a power-down feature to reduce the power consumption to very low levels while allowing fast recovery to full operation.
