MCP4716
  • MCP4716
  • MCP4716

MCP4716

In Production

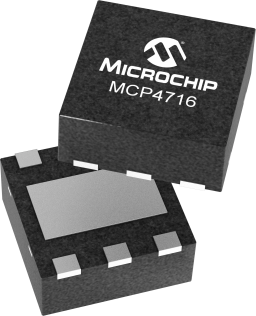

MCP4716 is a single channel, 10-bit, voltage output Digital-to-Analog Converter with integrated EEPROM and an I2C Compatible Serial Interface.The MCP47X6 DAC family offers integrated non-volatile memory (EEPROM) which allows DAC register and configuration bit values to be saved at power off. The VREF pin or the device VDD can be selected as the DAC’s reference voltage. Power-Down modes enable system current reduction when the DAC output voltage is not required. These devices are available in small 6-pin SOT-23 and DFN 2x2 mm packages.We welcome questions, comments and recommendations for improvements to this page - please contact us at: DACwebrequests@microchip.com if you have any; please mention the part number in the email subject header....

Microchip Technology MCP4716 Product Info

16 April 2026 1

Parameters

Resolution

10

Number of Input Channels

1

Interface

I²C

INL Max LSB

3.625

Output Settling Time (μs)

6

Memory Type

Non-Volatile

Features

  • 10-bit Resolution
  • Rail-to-Rail Output
  • Fast Settling Time of 6 µs (typical)
  • DAC Voltage Reference Options:
  • VDD
  • VREF
  • Output Gain Options:
  • Unity (1x)
  • 2x, only when VREF is used as voltage source
  • Non-Volatile Memory (EEPROM)
  • Auto Recall of Saved DAC register setting
  • Auto Recall of Saved Device Configuration (Voltage Reference, Gain, Power Down)
  • Power-Down Modes:
  • Disconnects output buffer
  • Selection of VOUT pull-down resistors (640 kohm, 125 kohm, or 1 kohm)
  • Low Power Consumption
  • Normal Operation: 210 µA typ.
  • Power Down Operation: 60 nA typ. (PD1:PD0 = “11”)
  • Single-Supply Operation: 2.7V to 5.5V
  • I2C™ Interface:
  • Eight Available Addresses
  • Standard (100 kbps), Fast (400 kbps), and High-Speed (3.4 Mbps) Modes
  • Small 6-lead SOT-23 and DFN (2x2) Packages
  • Extended Temperature Range: -40°C to +125°C
  • AEC-Q100 Grade 1 qualified

    • Description

    MCP4716 is a single channel, 10-bit, voltage output Digital-to-Analog Converter with integrated EEPROM and an I2C Compatible Serial Interface.


    The MCP47X6 DAC family offers integrated non-volatile memory (EEPROM) which allows DAC register and configuration bit values to be saved at power off. The VREF pin or the device VDD can be selected as the DAC’s reference voltage. Power-Down modes enable system current reduction when the DAC output voltage is not required. These devices are available in small 6-pin SOT-23 and DFN 2x2 mm packages.


    We welcome questions, comments and recommendations for improvements to this page - please contact us at: DACwebrequests@microchip.com if you have any; please mention the part number in the email subject header.
