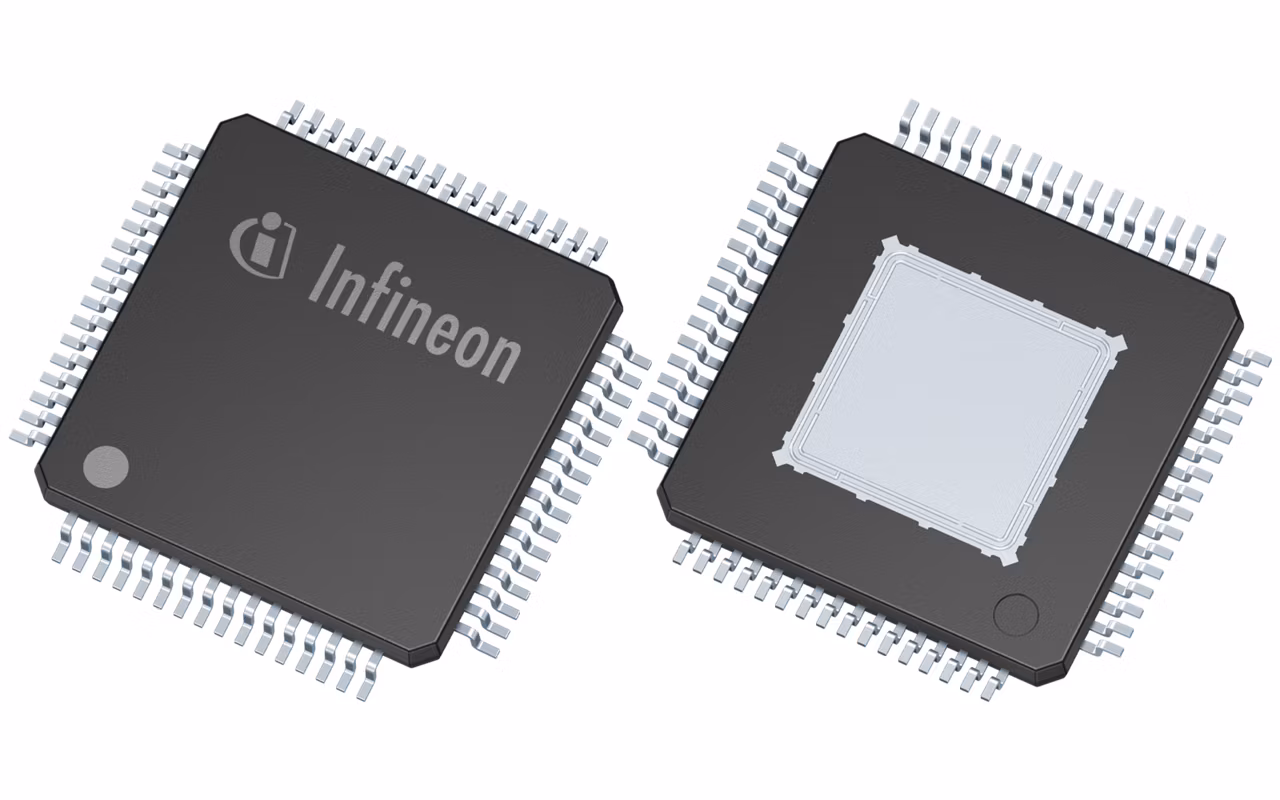

XMC4400-F64K256 BA
  • XMC4400-F64K256 BA

XMC4400-F64K256 BA

Active and preferred

XMC4400 combines Infineon's leading-edge peripheral set with an industry-standard ARM® Cortex™-M4. As one of its key features it offers a high-resolution PWM unit with a tiny resolution of 150ps. This unique peripheral makes it especially suitable for digital power conversion in applications like solar inverters ,SMPS and uninterruptible power supplies (UPS). XMC4400 is supported by Infineon's integrated development platform DAVE™ 3.

Infineon Technologies XMC4400-F64K256 BA Product Info

16 April 2026 0

Parameters

A/D Input Lines

9

Additional Features

USB, HRPWM, Ethernet 10/100 Mbit/s

Budgetary Price €/1k

5.99

CAN Nodes

2

CPU

ARM Cortex-M4

Digital I/O Pins

41

DMA Channels

8

DSP Functionality

Yes

EEPROM Emulation

Yes

External Bus Interface

No

Family

XMC4400

Flash

256 kByte

Floating Point Unit

Yes

Frequency max

120 MHz

I/O Operation Voltages

3.3 V

Instruction Width

32/16 ([bits])

On-chip Clock Generation

Yes

On-chip Voltage Regulator

Yes

Oscillator Watchdog

Yes

Power Mode

clock gating possible

Program Memory

256 kByte

Qualification

Industrial

Real Time Clock

Yes

Secondary Core

N/A

Serial I/O Interfaces

4

SRAM (incl. Cache)

80 kByte

SRAM

80 kByte

Temperature

-40 to 125°C

Timed I/O Pins

32

Touch/LED Matrix Control

Yes

Type of Memory

Flash

Type of Serial I/O Interfaces

SPI, I²S, I²C, UART

Watchdog Timer

Yes

Apps

Medium voltage IBC (48 V), Battery energy storage (BESS), DIN rail power supply solutions, General purpose motor drive

Features

  • ARM® Cortex®-M4 120MHz , DSP MAC & FPU
  • 8-channel DMA + DMAs for USB & Ethernet
  • Supply voltage range: 3.13 – 3.63V
  • USB 2.0 full-speed on-the-go
  • CPU Frequency: 120MHz
  • eFlash:256kB including hardware ECC
  • 80kB SRAM
  • Package: TQFP-64
  • 4xΔΣ-Demodulator
  • Temperature range: -40°… 125°
  • 10/100 Ethernet MAC (/w IEEE 1588)
  • 2x CAN, 64 MO
