BGA525N6
  • BGA525N6

BGA525N6

Active and preferred

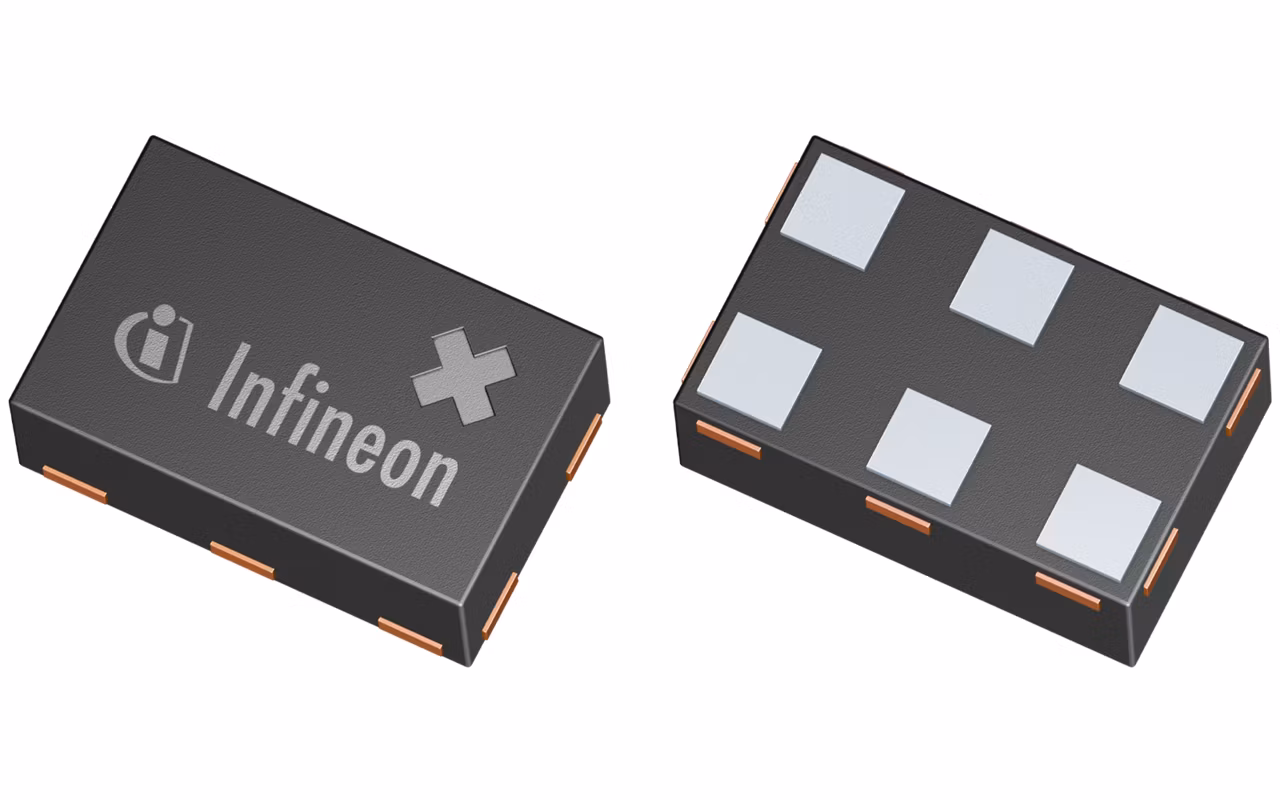

The BGA525N6 is designed to enhance GNSS signal sensitivity for band L1/L2/L5 especially in wearables and mobile cellular IoT applications. With a high gain and ultra-low noise figure of the LNA, system sensitivity is significantly improved compared to conventional LNAs. Next to the Standard Mode, BGA525N6 offers a Low-power Mode and High-gain Mode. Operating in Low-power Mode, the LNA consumes less than 2 mW preserving valuable battery power, which is ideal for small battery powered GNSS devices. Operating in High-gain Mode, the LNA provides up to 21 dB Gain and ensures best performance and fastest Time-To-First-Fix. The GPIO control interface provides a straightforward control over 4 different operating modes. The broadband design ensures the functionality of all GNSS signals within 1164 to 1615 MHz with the same matching. Simplified dual-band GNSS system designs with one RF-Path are enabled by BGA525N6.

Infineon Technologies BGA525N6 Product Info

16 April 2026 1

Parameters

Frequency

1164 – 1615 MHz (L1/L2/L5)

Gain

19 dB, 17.9 dB, 15.5 dB

ICC

3.4 mA, 1.5 mA, 2.3 mA

IIP3

1 dBm, -2.5 dBm, -5 dBm

NF

0.7 dB, 0.8 dB, 0.9 dB

P-1dB (in)

-5, -2.5, -14

VCC operating range

1.1 V to 3.3 V

Features

  • Operation frequencies 1164 to 1615 MHz
  • Multiple-Operating Modes for different applications
  • Current consumption down to 1.5 mA
  • Wide supply voltage range 1.1 V to 3.3 V
  • High insertion power gain up to 21 dB
  • Low noise figure down to 0.7 dB
  • 2 kV HBM ESD protection (inluding AI pin)
  • Broadband design allows simultaneous operation of L1,L2,L5
