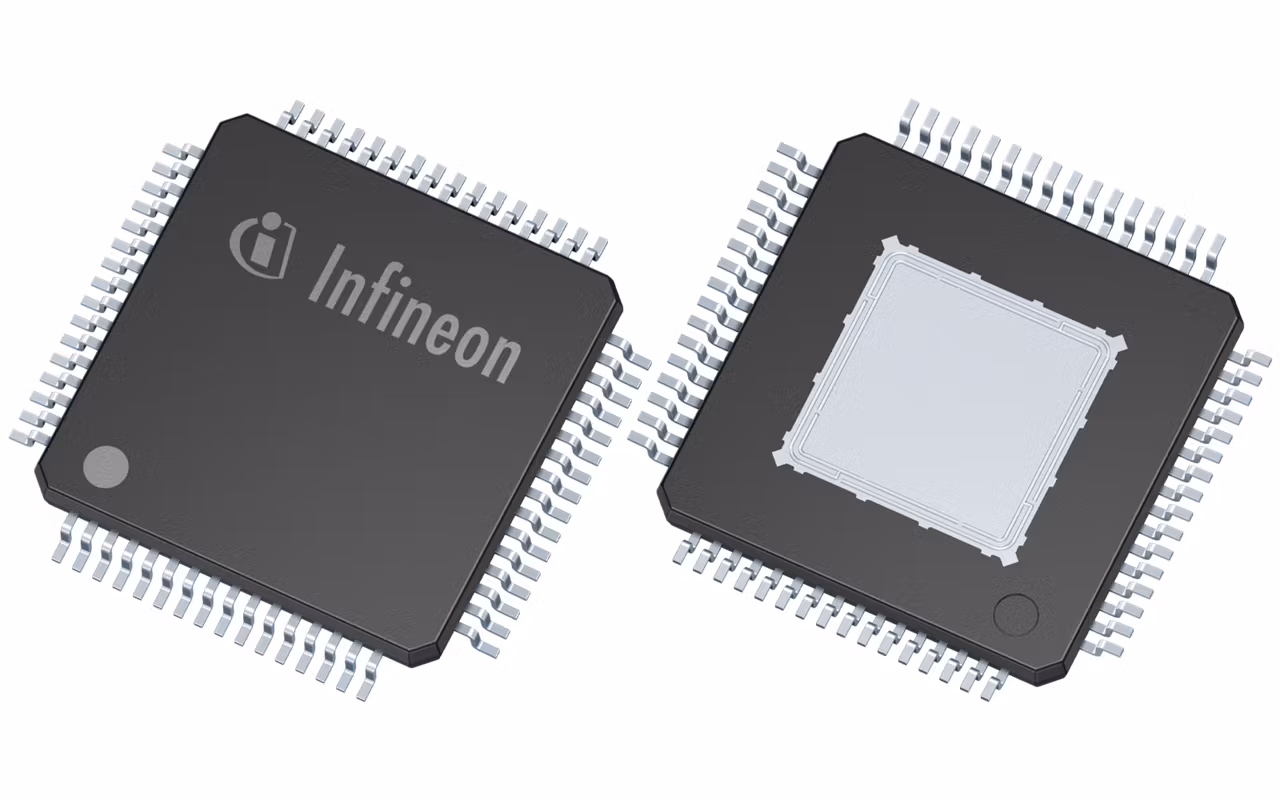

XMC4104-F64F64 BA
  • XMC4104-F64F64 BA

XMC4104-F64F64 BA

Active and preferred

The XMC4100/4200 series belongs to XMC4000 family of industrial microcontrollers based on ARM Cortex-M4 processor core. XMC4100/4200 series of microcontrollers take advantage of Infineon's decades of experience in microcontroller design, providing an optimized solution.The XMC4100/4200 series devices combine the extended functionality and performance of the ARM Cortex-M4 core with powerful on-chip peripheral subsystems and on-chip memory units.

Infineon Technologies XMC4104-F64F64 BA Product Info

16 April 2026 0

Parameters

A/D Input Lines

9

Budgetary Price €/1k

3.47

CPU

ARM Cortex-M4

Digital I/O Pins

45

DMA Channels

8

DSP Functionality

Yes

EEPROM Emulation

Yes

External Bus Interface

No

Family

XMC4100

Flash

64 kByte

Floating Point Unit

Yes

Frequency max

80 MHz

I/O Operation Voltages

3.3 V

Instruction Width ([bits])

32/16

On-chip Clock Generation

Yes

On-chip Voltage Regulator

Yes

Oscillator Watchdog

Yes

Power Mode

clock gating possible

Program Memory

64 kByte

Qualification

Industrial

Real Time Clock

Yes

Secondary Core

N/A

Serial I/O Interfaces

4

SRAM (incl. Cache)

20 kByte

SRAM

20 kByte

Temperature

-40 to 85°C

Timed I/O Pins (PWM, CAPCOM)

16

Touch/LED Matrix Control

Yes

Type of Memory

Flash

Type of Serial I/O Interfaces

I²S, I²C, SPI, UART

Watchdog Timer

Yes

Features

  • 64 KB Flash, 20 KB Ram
  • Supply voltage range: 3.13 to 3.63V
  • USIC4ch [Quad SPI, SCI/UART,I²C,I²S,LIN]
  • 1x PWM Timers ,16-64Bit 8ch + Dead-Time
  • 2x CAN, 64 MO
  • Peripherals Clock: 80 [MHZ]
  • Core frequency: 80 [MHZ]
  • Motor Control Hall and Encoder Interface
  • Industrial Connectivity
  • Package: TQFP64
  • Temperature range: -40°… 85°
  • High Resolution PWM 150ps
