TLV4976-2K
  • TLV4976-2K

TLV4976-2K

Active and preferred

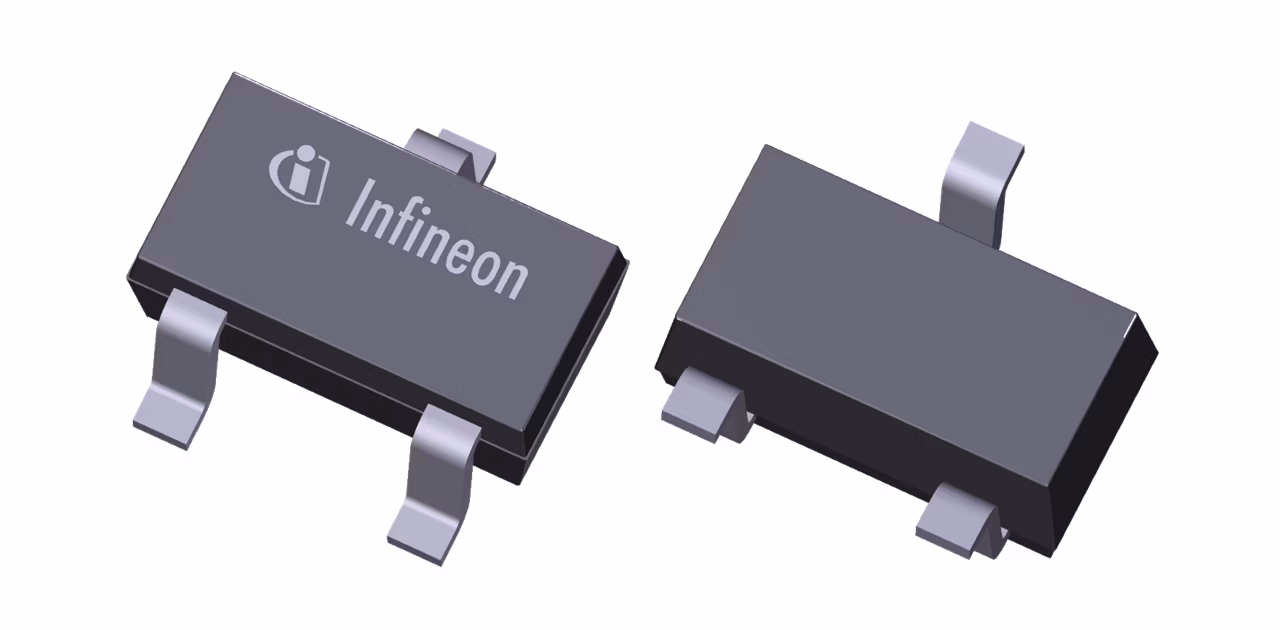

XENSIV™ TLV4976-2K is a high precision unipolar Hall switch with a two wire, 6 mA/14 mA current interface in a SMD package. A chopped measurement principle provides high stability switching thresholds for operating temperatures between -40°C and 85°C.

Infineon Technologies TLV4976-2K Product Info

16 April 2026 0

Parameters

Bhyst

1.8 mT

Bop

4.5 mT

Brp

2.7 mT

Interfaces

current interface

Language

Magnetics

Planned to be available until at least

2034

Product Category

Sensors

Product Description

Unipolar Hall switch with current interface for consumer applications

Supply Voltage range

3 V to 18 V

Temperature range

-40 °C to 125 °C

Type

Unipolar

Features

  • 3.0V to 18V supply voltage operation
  • sensitivity & stable magnetic switches
  • Active Error Compensation for stress
  • Reverse battery protection (-18V)
  • Superior temperature stability
  • Low jitter (typ. 1μs)
  • Digital output: 6/14mA modulation
  • Unipolar version
  • SMD package SC59 (SOT23 compatible)
  • Industrial / Consumer only
