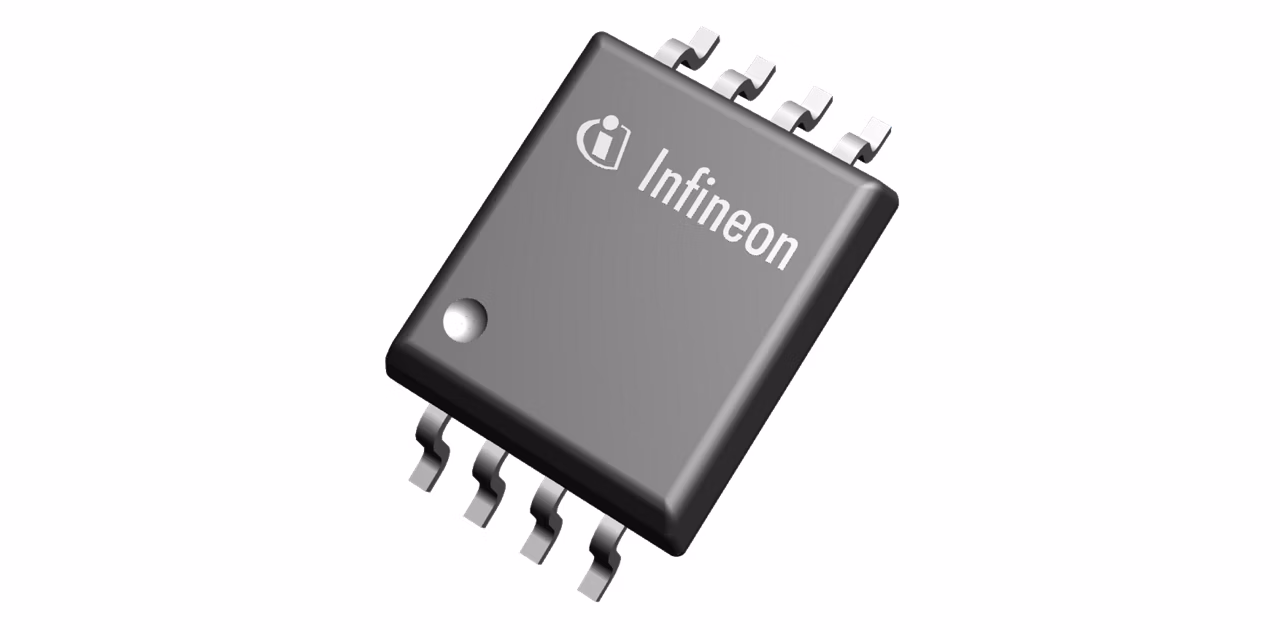

1ED3241MC12H

Active and preferred

EiceDRIVER™ Compact single-channel isolated gate driver with two-level slew-rate control and 18 A typical sinking and sourcing peak output current in DSO-8 wide-body package with large creepage distance for IGBTs, MOSFETs and SiC MOSFETs. 1ED3241 offers two separate outputs with 18 A typical peak output current to control two independent gate resistances for both turn-on and turn-off thus enabling two-level slew-rate control.

Infineon Technologies 1ED3241MC12H Product Info

16 April 2026 0

Parameters

Channels	1
Configuration	High-side
Input Vcc range	3.1 V to 17 V
Isolation Type	Galvanic isolation - Reinforced
Output Current (Sink)	18 A
Output Current (Source)	18 A
Package	PG-DSO-8
PDout	625 mW
Product Name	1ED3241MC12H
Qualification	Industrial
RDSON_H(max)	0.41 Ω
RDSON_H(typ)	0.26 Ω
RDSON_L (max)	0.32 Ω
RDSON_L(typ)	0.21 Ω
RthJA	104 K/W
Turn Off Propagation Delay	110 ns
Turn On Propagation Delay	110 ns
VBS UVLO (On)	12.5 V
VBS UVLO (Off)	10.4 V
VCC UVLO (On)	3.1 V
VCC UVLO (Off)	2.5 V
Voltage Class	2300 V

Apps

Server power supply units (PSU), On-board charging (OBC), Refrigerators and freezers, EV charging, Photovoltaic, Motor control, Uninterruptible power supplies (UPS)

Features

Single channel isolated gate driver
2-level slew-rate control (2L-SRC)
For up to 2300 V Si & SiC switches
2300 V funct. offset volt. capable
Galv. isolated coreless transformer
18 A typ sink & source peak output
40 V absolute max. output voltage
Max. 110 ns propagation delay
High CMTI >200 kV/μs
Short-circuit clamping
Active shutdown
DSO-8 300 mil wide-body package
