TLT9252VLC
  • TLT9252VLC

TLT9252VLC

Active and preferred

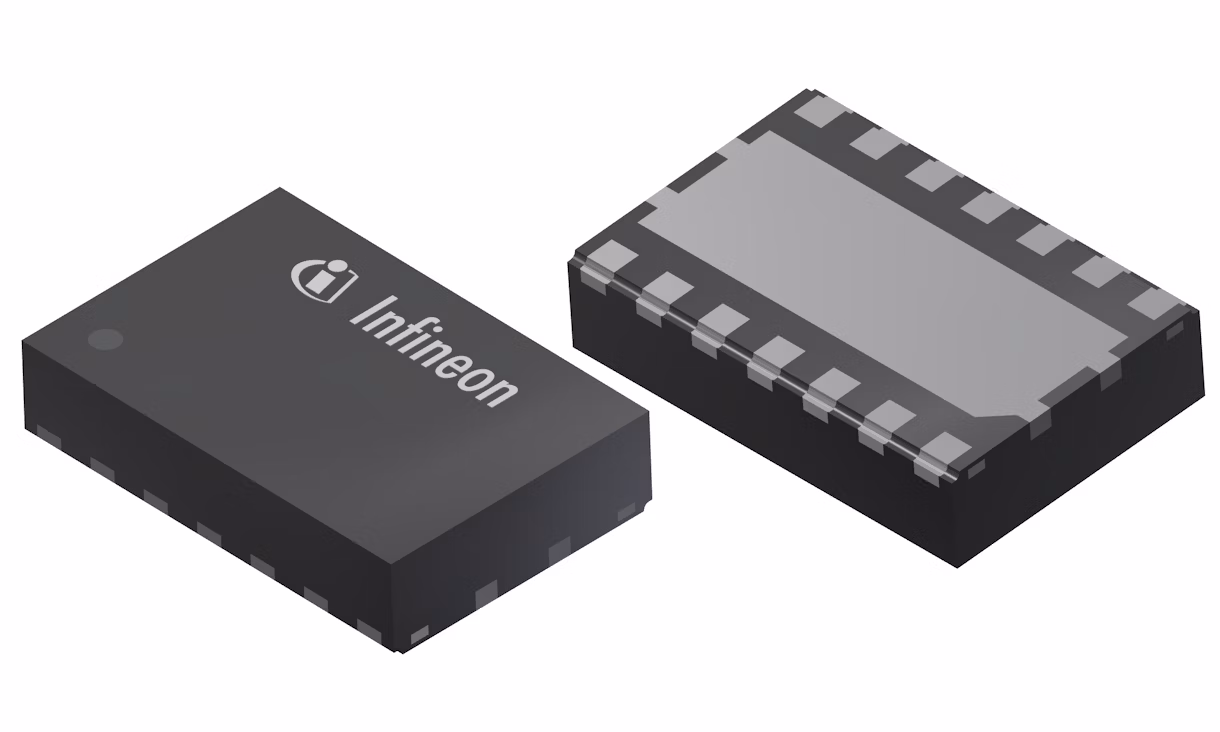

TLT9252VLC: bus layer-CAN protocol interface. Drives signals, protects microcontroller from interferences. Low EME, no common mode choke needed. Optimized modes for reduced current consumption. Sleep mode: <25µA, detects Wake-Up Pattern on HS CAN bus. VIO supports 3.3V/5V microcontrollers. TLT9252VLC: compact TSON-14 package with LTI feature.

Infineon Technologies TLT9252VLC Product Info

16 April 2026 0

Parameters

Additional Features

WK, Vio, AEC-Q100 Grade 0

Base Product

TLT9252x

Bus Wake-Up Capability

Yes

Family

CAN Transceiver

Features

Vio, AEC-Q100 Grade 0, WK

Language

IBIS

Planned to be available until at least

2039

Product Category

Transceivers

Qualification

Automotive

Quiescent Current

< 25 µA in sleep mode

Standards

ISO11898-2

Supply Voltage

3.3 V, 5 V

Transmission Rate max

5 MBit/s

Type

CAN FD

Wake-up Inputs

Bus Wake-up, Wake-up Pin

Apps

Domain controller for ADAS & autonomous driving, Chassis control & safety, Industrial automation

Features

  • ISO11898-2 (2016) and SAE J2284-4/-5
  • Infineon automotive quality
  • AEC-Q100 Grade 0 (Ta: -40°C to +150°C)
  • CANFD data frames up to 5MBit/s
  • Bus Wake-up Pattern (WUP)
  • Robust ESD: ±10kV (HBM), ±9kV
  • Extended VCC/VIO R
  • Dual Supply for Battery
  • TxD Time-Out, RxD Recessive Clamping
  • Low EME for Chokeless Application
  • EMI immunity with wide CM range
