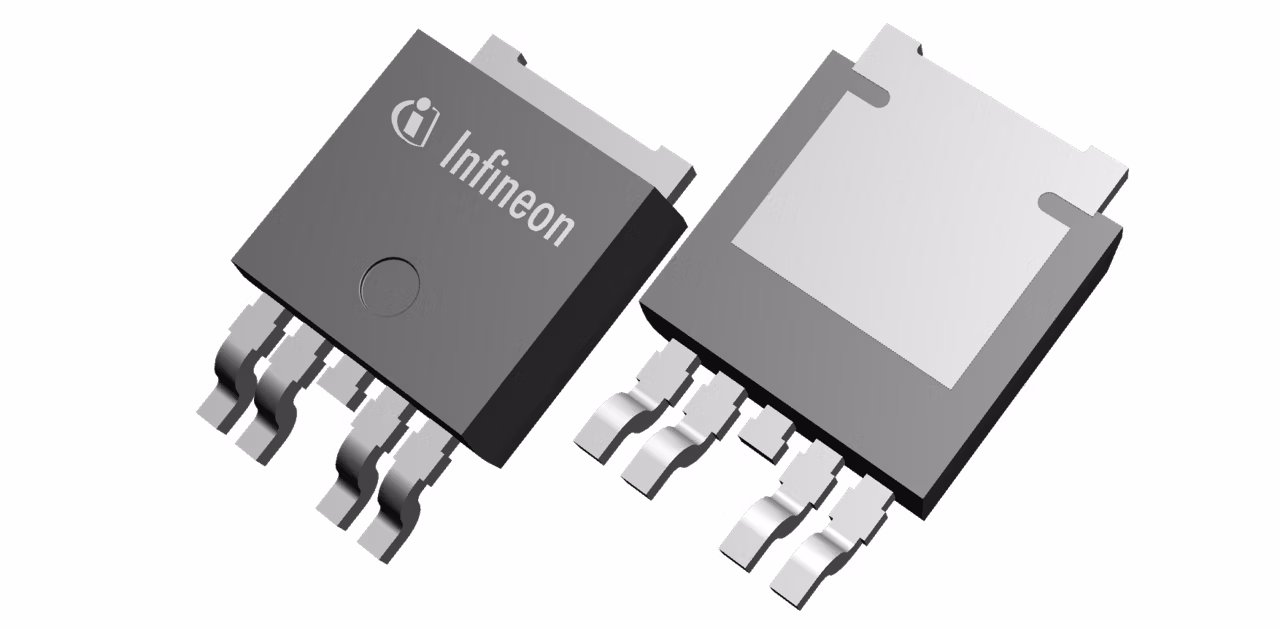

TLS850D0TE V50
  • TLS850D0TE V50

TLS850D0TE V50

The TLS850D0TAV50 regulators are ideal for automotive or battery-connected supply systems, offering 3V to 40V input range, 40μA quiescent current, 2% output voltage accuracy, and 500mA max current. They feature a new loop concept for fast regulation and stability, making them suitable for automotive systems.

Infineon Technologies TLS850D0TE V50 Product Info

16 April 2026 1

Parameters

Accuracy

2 %

Base Product

TLS850D0xx

Dropout Voltage

70 mV

Early Warning

No

Enable (=Inhibit)

Yes

Hold

No

Operating Temperature range

-40 °C to 150 °C

Operating Voltage range

3 V to 40 V

Output Current max

500 mA

Output Voltage Type

5.0 V

Over Voltage Protection

No

Planned to be available until at least

n.a

Power Fail

No

Power Good

No

Qualification

Automotive

Quiescent Current

40 µA

Regulator Type

High Performance

Reset

Yes

Status Output

No

Watchdog

No

Apps

Automotive body electronics & power distribution, Seat control module, HVAC control module, In-vehicle infotainment & HMI

Features

  • Wide Input Voltage Range from 3.0 V to 40 V
  • Fixed Output Voltage 5 V
  • Output Voltage Precision = ± 2 %
  • Output Current Capability up to 500 mA
  • Ultra Low Current Consumption typ. 40 µA
  • Very Low Dropout Voltage typ. 70 mV@100 mA
  • Stable with Ceramic Output Capacitor of 1 µF
  • Delayed Reset at Power-On: 16.5 ms
  • Enable, Undervoltage Reset,Overtemperature Shutdown
  • Output Current Limitation
  • Wide Temperature Range
  • Green Product (RoHS compliant)
  • AEC Qualified

Description

  • Very wide input voltage range
  • Fast voltage regulation loop
  • Supports voltage cranking application
  • Very low dropout
