BTS3104SDR
  • BTS3104SDR

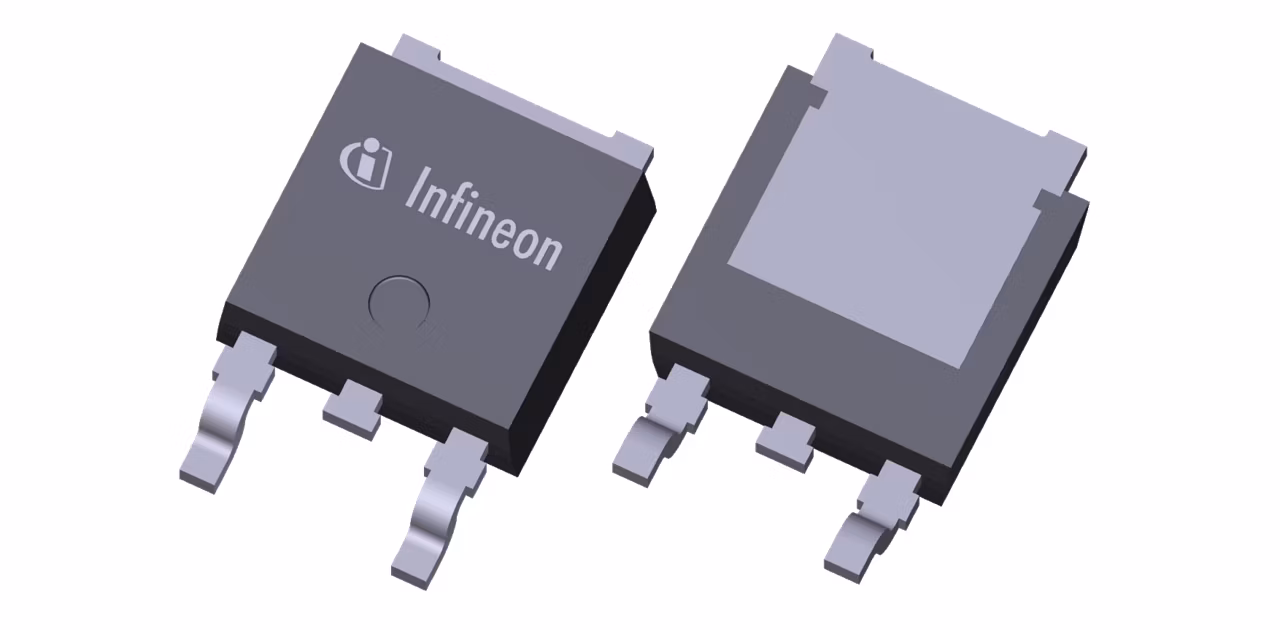

BTS3104SDR

Active and preferred

The BTS3104SDR is an automotive-qualified device designed for use in 12V and 24V automotive and industrial applications. It is a monolithically integrated power switch with a N channel vertical power FET and embedded protection functions. This single channel low-side MOSFET power switch, packaged in PG-T0252-3-11, offers embedded protective features for enhanced reliability.

Infineon Technologies BTS3104SDR Product Info

16 April 2026 0

Parameters

Channels

1

Classification

-

Control Interface

Discrete

Diagnostic Features

Output Status

Diagnostics

-

EAS/Avalanche Energy

50 mJ

EAS (Energy capability)

50 mJ

Family

Classic HITFET™ 24V

Features

24V COMPATIBLE

ID(lim) min

6 A

ID

2 A

IL(nom)

2 A

IL (Short Circuit Current)

6 A

Load Current

2.5 A

Mounting

SMT

Nominal Load Current per channel

2 A

Operating Temperature range

-40 °C to 150 °C

Planned to be available until at least

2039

Protection strategy

Auto-restart

RDS (on) (@ Tj = 150°C) max

323 mΩ

RDS (on) (@ Tj = 25°C)

121 mΩ

Recommended Operating Voltage max

60 V

toff (Turn OFF time) max

120 µs

ton (Turn ON time) max

100 µs

VDS max

60 V

Apps

Automotive body electronics & power distribution, Automotive body control module (BCM), Active suspension control

Features

  • Short circuit and over load protection
  • Thermal shutdown with latch behavior
  • ESD protection
  • Overvoltage protection
  • 3.3V & 5V compatible logic inputs
  • Analog driving possible
  • 12V and 24V usability
  • Green Product (RoHS compliant)
  • AEC Qualified
