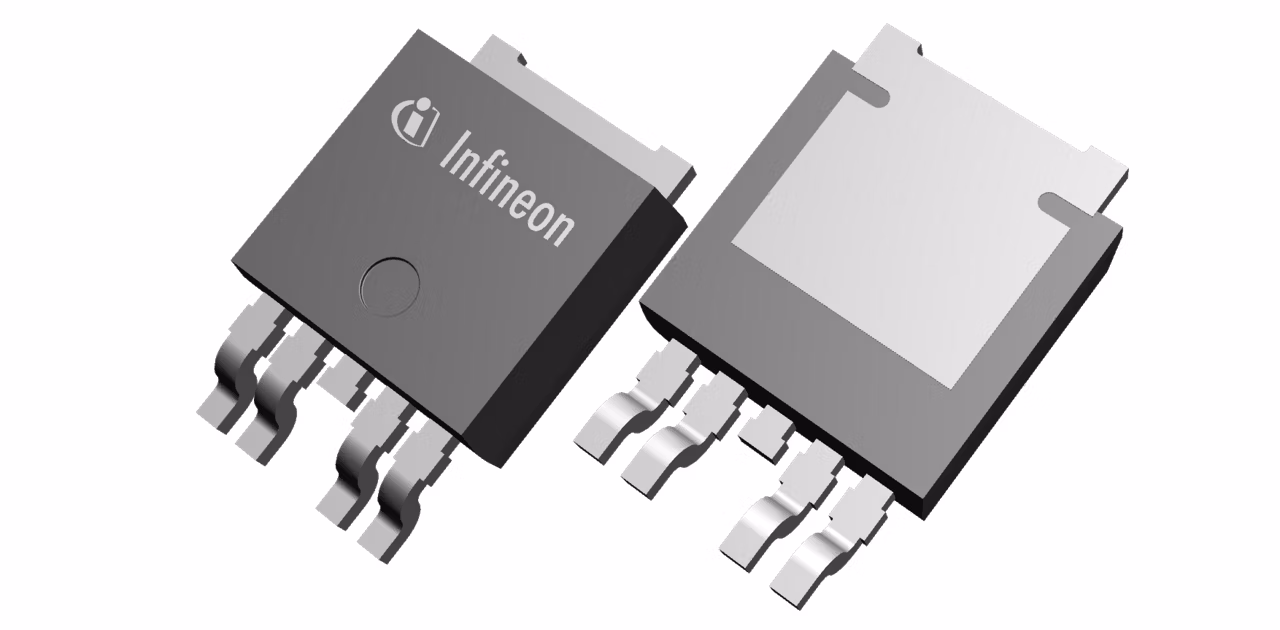

TLS850C2TE V50
  • TLS850C2TE V50

TLS850C2TE V50

Active and preferred

The TLS850C2TE is a regulator suitable for automotive applications with an input range of 3V to 40V. Its low quiescent current of 20µA is ideal for always-on systems. The ultra-low dropout enables operation during cranking. With a compact design and internal protection features, it offers stable output voltage and safeguards against failures. Also available in 3.3V output version as TLS850C2TE V33.

Infineon Technologies TLS850C2TE V50 Product Info

16 April 2026 0

Parameters

Accuracy

2 %

Base Product

TLS850C2xx

Dropout Voltage

100 mV

Early Warning

No

Enable (=Inhibit)

No

Family

OPTIREG™ linear High Performance

Hold

No

Operating Temperature range

-40 °C to 150 °C

Operating Voltage range

3 V to 40 V

Output Current max

500 mA

Output Voltage Type

5.0 V

Over Voltage Protection

No

Planned to be available until at least

2038

Power Fail

No

Power Good

No

Qualification

Automotive

Quiescent Current

20 µA

Regulator Type

High Performance

Reset

Yes

Status Output

No

Watchdog

No

Features

  • input voltage range from 3.0 V to 40 V
  • temperature range Tj : -40°C to +150°C
  • Fixed output voltage 5 V
  • Output current capability up to 500 mA
  • Reset Output
  • Output voltage accuracy ≤ ±2%
  • low dropout voltage, typ. 100 mV@100 mA
  • ceramic output capacitor of 1 µF
  • Over temperature shutdown
  • Output current limitation
  • temperature range from -40°C up to 150°C

Description

  • Very wide input voltage range
  • Low passive component BOM cost
  • Supervisory functionality (RESET)
  • Suitable for Cranking condition
  • Low current consumption
  • Best Fit: 5V MCU Supply
  • CAN Transceiver
  • FlexRay Transceiver
  • Sensors (on-board)
  • Actuator ICs
  • Driver ICs
