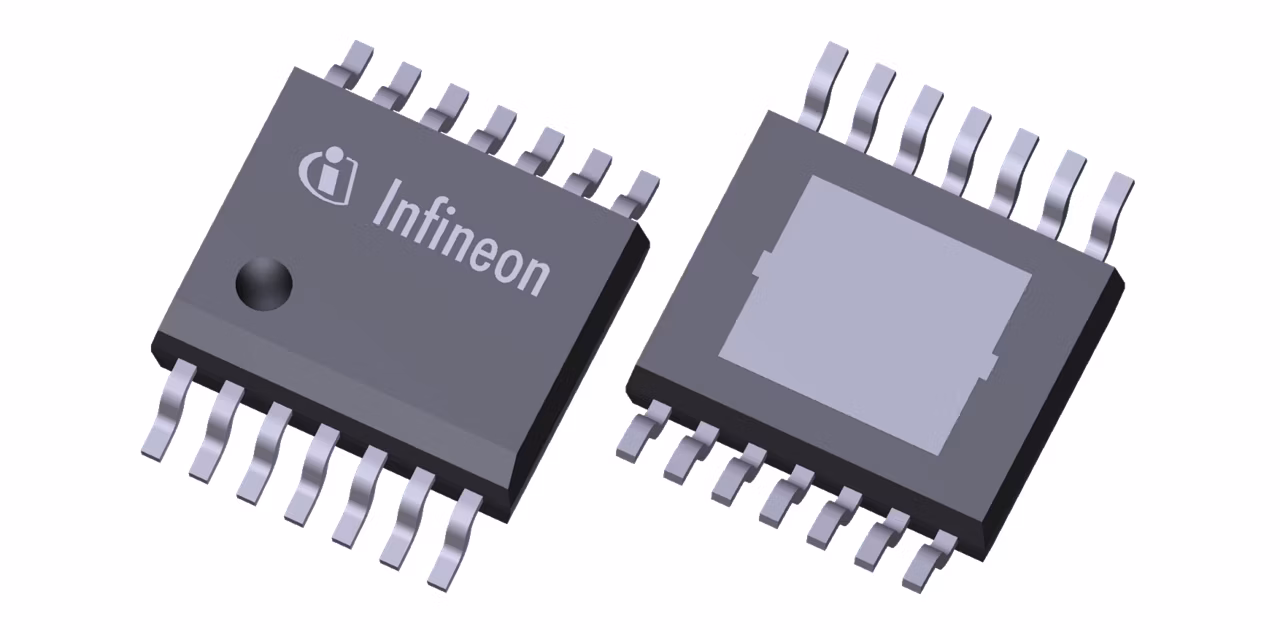

TLS835B2EL V
  • TLS835B2EL V

TLS835B2EL V

Active and preferred

Input range of 3V to 40V and low 20μA quiescent current make this regulator ideal for automotive applications. Fast regulation and high stability with just 1μF ceramic capacitor. Dropout voltage as low as 100mV (5V output) and 120mV (3.3V output) for currents below 100mA. Starts at 3V input, suitable for cranking conditions. Enable feature for on/off control. Internal protection against output faults, overcurrent, and overtemperature.

Infineon Technologies TLS835B2EL V Product Info

16 April 2026 0

Parameters

Accuracy

2 %

Base Product

TLS835B2xx

Dropout Voltage

100 mV

Early Warning

No

Enable (=Inhibit)

Yes

Family

OPTIREG™ linear High Performance

Hold

No

Operating Temperature range

-40 °C to 150 °C

Operating Voltage range

3 V to 40 V

Output Current max

350 mA

Output Voltage Type

adj.

Over Voltage Protection

No

Planned to be available until at least

2038

Power Fail

No

Power Good

No

Qualification

Automotive

Quiescent Current

20 µA

Regulator Type

High Performance

Reset

No

Status Output

No

Watchdog

No

Features

  • input voltage range from 3.0 V to 40 V
  • Output voltage between 1.5 V and 6 V
  • Output voltage precision ≤ ±2%
  • Output current capability up to 350 mA
  • low current consumption 20 μA
  • Very low dropout Voltage of typ. 200 mV
  • Enable
  • Overtemperature shutdown
  • Output current limitation
  • temperature range from -40°C up to 150°C
  • Green Product (RoHS compliant)
