TLS820F0EL V33

Infineon Technologies TLS820F0EL V33 Product Info

16 April 2026 0

Accuracy	2 %
Base Product	TLS820Fxxx
Dropout Voltage	80 mV
Early Warning	No
Enable (=Inhibit)	Yes
Hold	No
Operating Temperature range	-40 °C to 150 °C
Operating Voltage range	3 V to 40 V
Output Current max	200 mA
Output Voltage Type	3.3 V
Over Voltage Protection	No
Power Fail	No
Power Good	No
Qualification	Automotive
Quiescent Current	40 µA
Regulator Type	High Performance
Reset	Yes
Status Output	No
Watchdog	Yes

High-performance cockpit controller

Wide Input Voltage Range from 3.0 V to 40 V
Output Voltage Precision ≤ ± 2 %
Fixed Output Voltage 5 V or 3.3 V
Output Current Capability up to 200 mA
Ultra Low Current Consumption typ. 40 μA
Very Low Dropout Voltage typ. 80 mV @100 mA
Stable with Ceramic Output Capacitor of 1 μF
Delayed Reset at Power-On with 2 Programmable Delay Times 8.5 ms / 16.5 ms
Adjustable Reset Threshold down to 2.50 V
Watchdog with flexible timings and current dependant deactivation:
16 ms / 32 ms / 48 ms / 96 ms, Activated at IQ > 5.5 mA)
Enable, Undervoltage Reset, Overtemperature Shutdown
Output Current Limitation
Wide Temperature Range
Green Product (RoHS compliant)
AEC Qualified

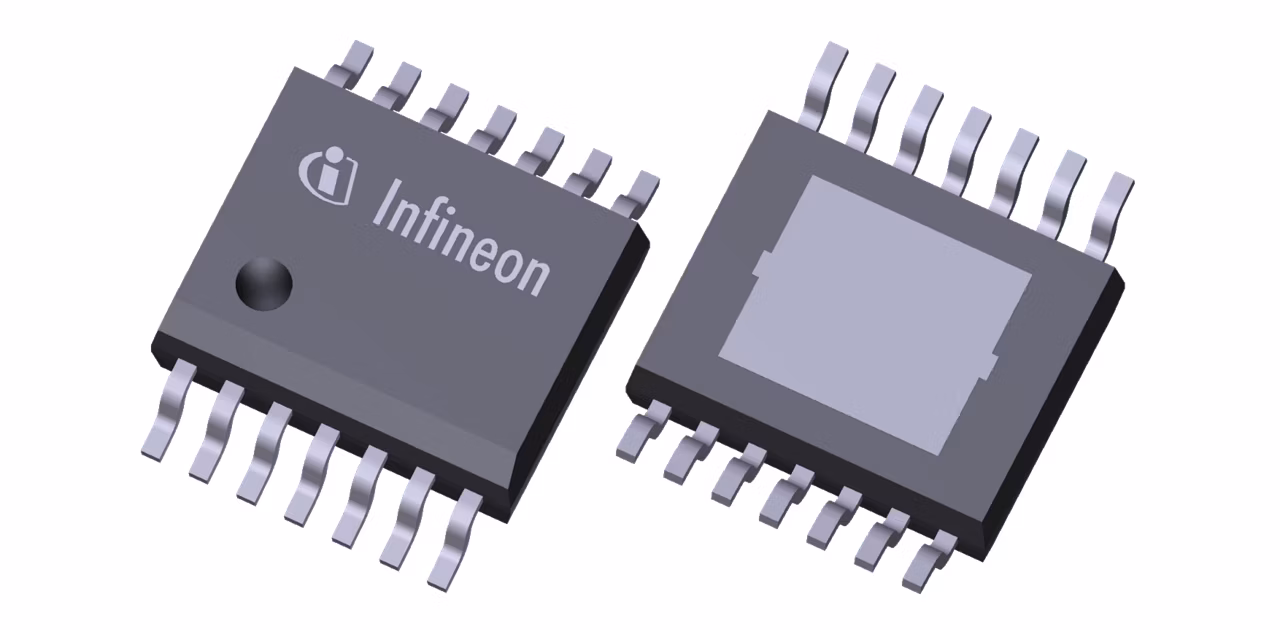

Figure 1 PG-SSOP-14
