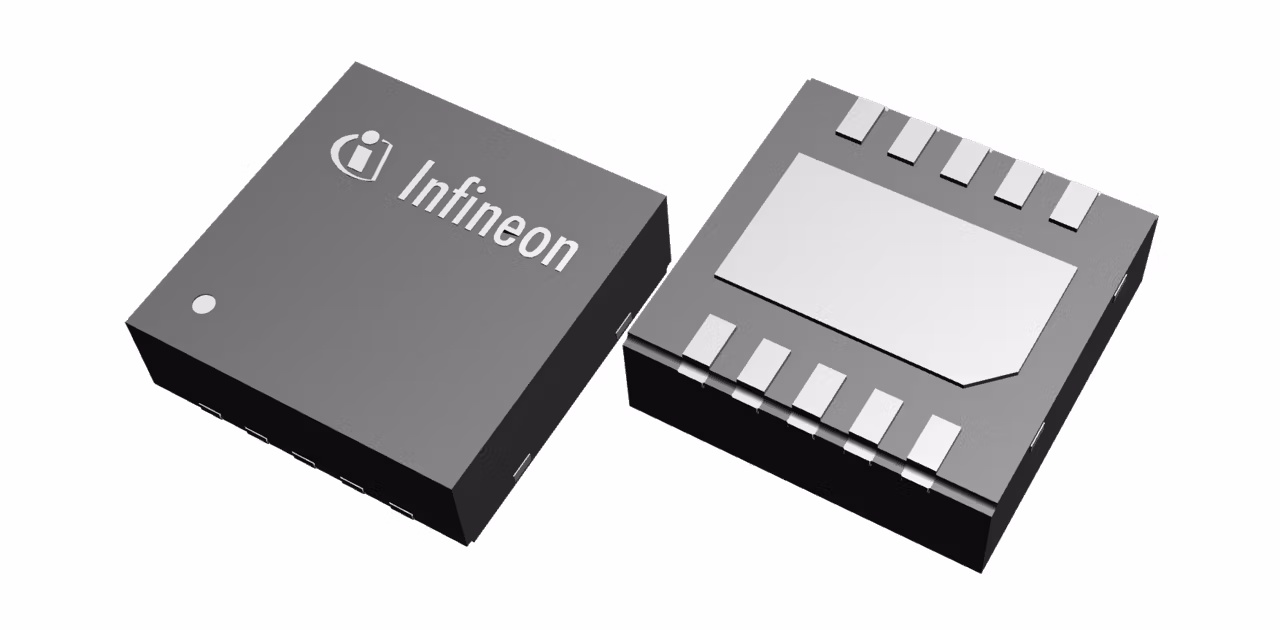

TLS810A1LD V33
  • TLS810A1LD V33

TLS810A1LD V33

Active and preferred

TLS810A1LDV33, with input range of 2.75V to 42V and ultra low quiescent of 5μA, is perfect for automotive applications. Fixed 3.3V output, 2% accuracy, and 100mA current capability. Requires just 1μF ceramic capacitor. Suitable for systems during cranking. Implements fast regulation and stability. Extended operating range from 2.75V. Ideal for automotive systems requiring continuous operation.

Infineon Technologies TLS810A1LD V33 Product Info

16 April 2026 0

Parameters

Accuracy

2 %

Base Product

TLS810A1xx

Dropout Voltage

250 mV

Early Warning

No

Enable (=Inhibit)

No

Family

OPTIREG™ linear High Performance

Hold

No

Operating Temperature range

-40 °C to 150 °C

Operating Voltage range

2.75 V to 42 V

Output Current max

100 mA

Output Voltage Type

3.3 V

Over Voltage Protection

No

Planned to be available until at least

2038

Power Fail

No

Power Good

No

Qualification

Automotive

Quiescent Current

5 µA

Regulator Type

High Performance

Reset

No

Status Output

No

Watchdog

No

Features

  • Ultra Low Quiescent Current of 5 μA
  • Input range: 2.75V - 42V
  • Output Current Capacity up to 100 mA
  • Low dropout: 250mV @ 100mA
  • Output Current Limit Protection
  • Overtemperature Shutdown
  • Wide Temperature Range
  • Green Product (RoHS Compliant)
  • AEC Qualified

Description

  • 2.75V LDO, perfect for cranking.
  • Stable with 1μF cap, saves space/cost.
  • Robustness reduces filtering costs.
