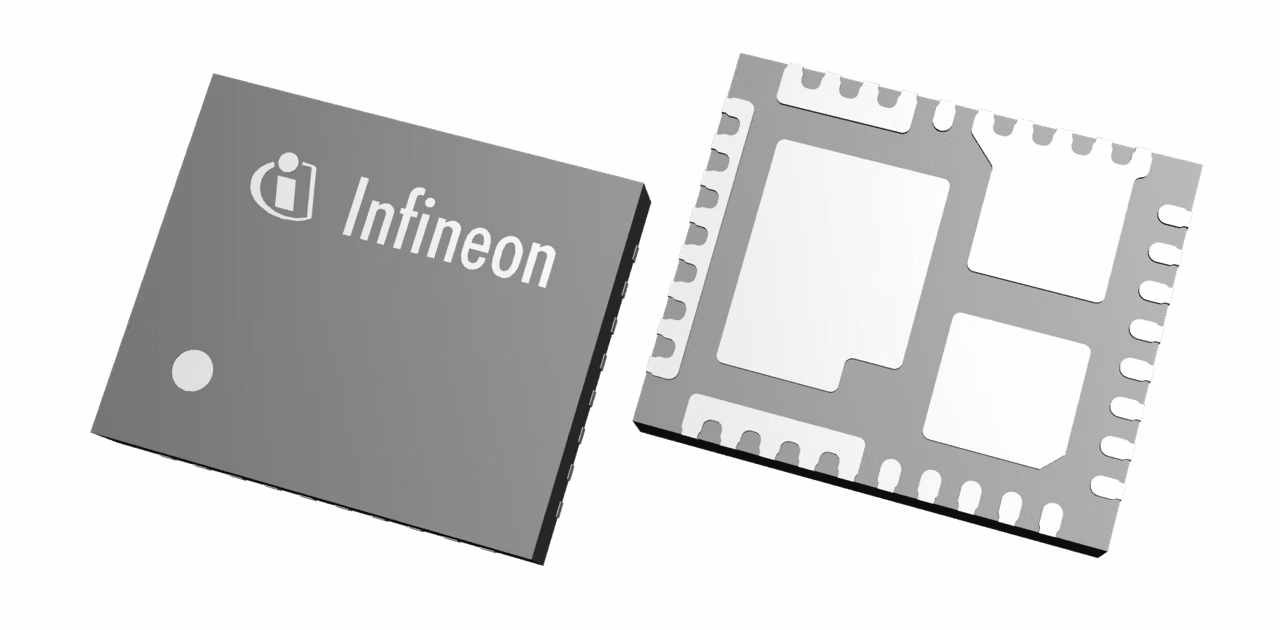

TLF12501
  • TLF12501

TLF12501

Active and preferred

The AEC-Q100 qualified TLF12501 integrated power stage is part of the OPTIREG™ multiphase product family and is optimized for the automotive segment long-term reliability. It contains a synchronous buck gate-driver IC which is co-packed with control and synchronous MOSFETs. The package is optimized for harsh automotive environment, PCB layout, heat transfer, driver/MOSFET control timing, and minimal switch node ringing.

Infineon Technologies TLF12501 Product Info

16 April 2026 0

Parameters

Features

Current sensing & temperature reporting

Input Voltage range

4.25 V to 16 V

Iout max

90 A

Iout

60 A

Moisture Sensitivity Level

3

Output Voltage range

0.225 V to 5.5 V

Package

PQFN 5 x 6

Qualification

AEC-Q100

Switching Frequency range

100 kHz to 2000 kHz

Technology

OPTIMOS™ 5

Type

Powerstage

Apps

ADAS & autonomous driving, Domain controller for ADAS & autonomous driving

Features

  • 60 A thermal design current (TDC)
  • Wide input range up to 16 V
  • Operation up to 2 MHz
  • Integrated current sensing
  • Bootstrap capacitor Auto-replenishment
  • Advanced protection features
  • Advanced fault reporting
  • Optimized package for automotive use
  • AEC-Q100 Rev H Grade 1 compliant

Description

  • Simple and easy to use
  • Minimum external components needed
  • High Fs for reduced power size/cost
  • Increased system reliability
  • Simplified root cause investigation
  • Better thermal-cycle reliability
