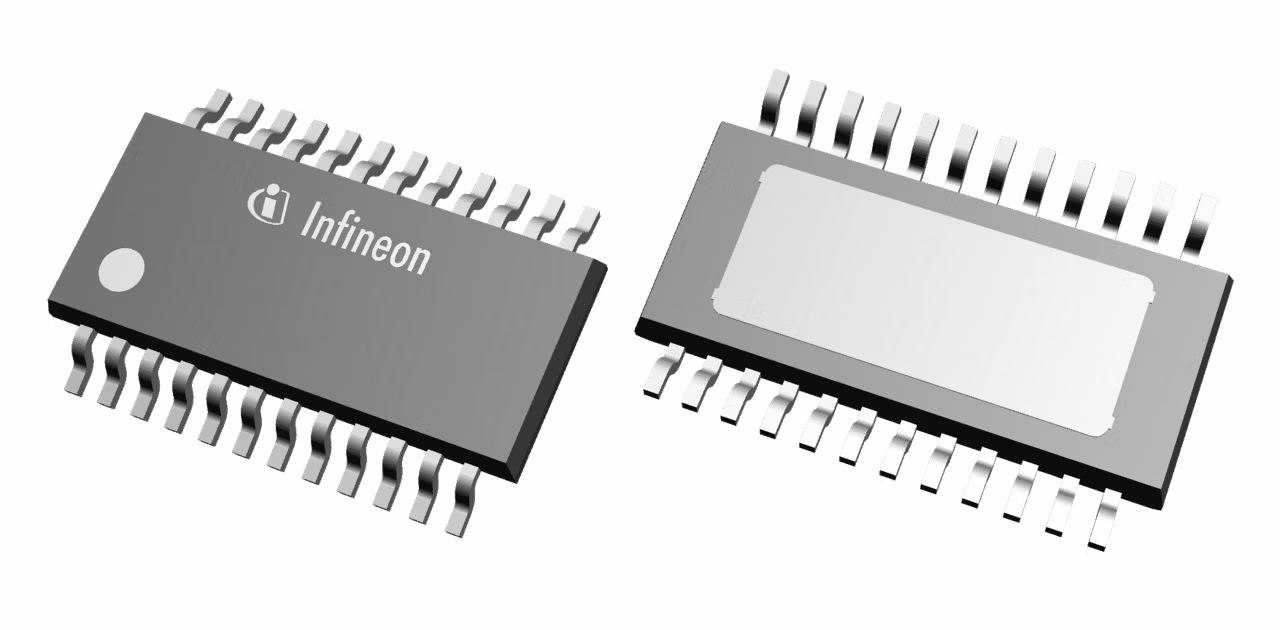

TLE9461ES
  • TLE9461ES

TLE9461ES

Active and preferred

The TLE9461ES is a monolithic IC for automotive CAN applications. It provides microcontroller supply, CAN bus interface, CAN FD support, high voltage GPIO, and SPI control. With low-power modes and wake-up options, it minimizes current consumption. The device features protective functions, configurable watchdog, and undervoltage reset.

Infineon Technologies TLE9461ES Product Info

16 April 2026 0

Parameters

Compatible Microcontrollers

TRAVEO™ T1G, T2G, AURIX™ TC2x, PSOC™ 4x

Family

OPTIREG™ Lite SBC

Output Drivers

1 x Charge Pump

Planned to be available until at least

2039

Quiescent Current

15µA (typ.) Sleep Mode

Standby Current

44µA (typ.) Stop Mode

Transceiver

1 x CAN FD ISO 11898 - 2

Transmission Rate max

5 MBit/s

Voltage Regulator Output ((VCC1))

5V / 150 mA

Voltage Regulator Output ((VCC2))

5V / 100 mA

Wake-up Inputs

Wake Pins, CAN

Apps

Automotive body control module (BCM), Seat control module, Automotive LED lighting systems, Full LED headlight system - multi-channel LED driver

Features

  • Low current in Stop & Sleep Modes
  • Periodic Cyclic Wake in SBC Normal Mode
  • Periodic Cyclic Sense in SBC Normal
  • Low-Drop Linear Voltage Regulator 5 V
  • Low-Drop Linear Voltage Regulator 5 V
  • High-Speed CAN transceiver supporting FD
  • High-Speed CAN Transceiver: ISO 11898-2
  • LIN Transceivers with TXD Timeout
  • High-V Wake I/P for Voltage Monitoring
  • High-Voltage GPIO:Configurable Functions
  • High-Voltage Measurement on AlternatePin
  • Fail Outputs for Fail-Safe signalization

Description

  • SBC families TLE926x and TLE927x
  • EMC & Low EME: Optimize Now!
  • Eco-Friendly AEC Certified Products
