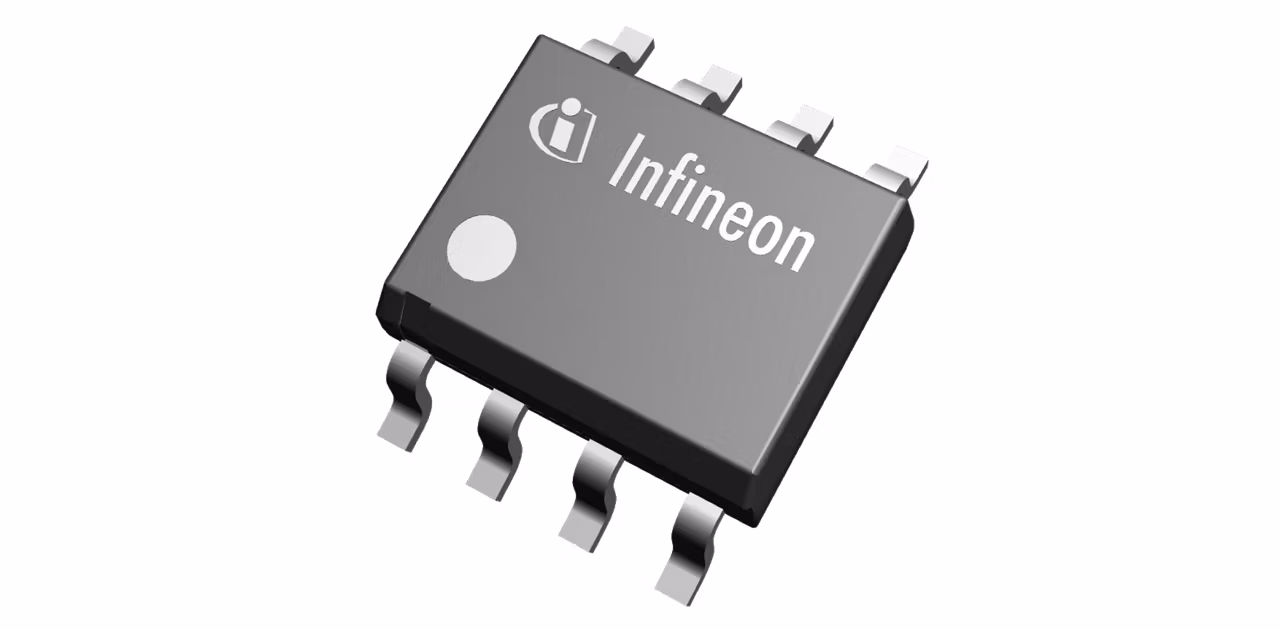

TLE7250VSJ
  • TLE7250VSJ

TLE7250VSJ

Introducing the TLE7250V, driving signals to the CAN bus, safeguarding the microcontroller, and supporting CAN FD with data rates up to 2 MBit/s. With Infineon Smart Power Technology SPT providing ESD and electromagnetic immunity, it's ideal for mixed supply HS CAN networks, including TLE7250VLE and TLE7250VSJ. AEC qualified for automotive use, it features two operating modes and optimized output slew rates for large HS CAN networks.

Infineon Technologies TLE7250VSJ Product Info

16 April 2026 0

Parameters

Additional Features

NEN; Vio

Base Product

TLE725x

Bus Wake-Up Capability

No

Family

CAN FD 2MBit/s

Features

Vio, NEN

Planned to be available until at least

n.a

Product Category

Transceivers

Qualification

Automotive

Quiescent Current

< 8 µA at 5 V standby

Standards

ISO11898-2

Supply Voltage

3.3 V, 5 V

Transmission Rate max

2 MBit/s

Type

CAN, CAN FD

Wake-up Inputs

None

Features

  • Fully compliant to ISO11898-2
  • Wide common mode range for electromagnetic immunity (EMI)
  • Very low electromagnetic emission (EME)
  • Excellent ESD robustness
  • Guaranteed loop delay symmetry to support CAN FD data frames up to 2 MBit/s
  • V IO input for voltage adaption to the microcontroller supply
  • Extended supply range on V CC and V IO supply
  • CAN short circuit proof to ground, battery and V CC
  • TxD time-out function
  • Low CAN bus leakage current in power-down state
  • Overtemperature protection
  • Protected against automotive transients
  • Power-save mode
  • Transmitter supply V CC can be turned off in power-save mode
  • Green Product (RoHS compliant)
  • Two package variants: PG-TSON-8 and PG-DSO-8
  • AEC Qualified
