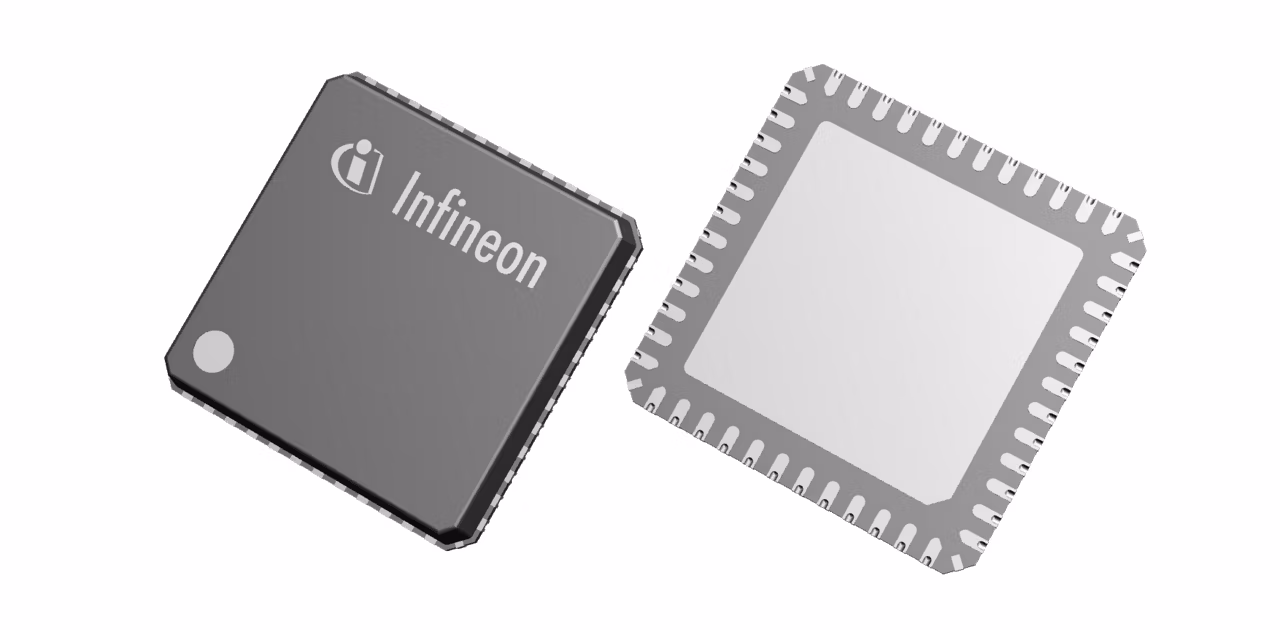

TLE9272QX
  • TLE9272QX

TLE9272QX

Active and preferred

CAN-LIN SBC for automotive applications. Features SMPS regulator (5V), LDO (5V, sensor), DC/DC Boost converter, HS-CAN transceiver (CAN FD), LIN transceiver, 16-bit SPI. Watchdog, Fail-Safe Input/Outputs, undervoltage reset. Low-power modes for battery apps. Wake-up via buses, inputs, cyclic wake. Built for automotive conditions.

Infineon Technologies TLE9272QX Product Info

16 April 2026 0

Parameters

Compatible Microcontrollers

TRAVEO™ T1G, T2G, AURIX™ TC2x, TC3x

Family

OPTIREG™ DCDC SBC

Iout max

750 mA

Output Current max

750 mA

Planned to be available until at least

2039

Quiescent Current

30 μA (typ) Sleep Mode

Standby Current

50 μA (typ) Stop Mode

Transceiver

3 x LIN2.2 / J2602, 1 x CAN FD ISO 11898-2

Transmission Rate max

5 MBit/s

VBOOST

8 V, 6.65 V

Voltage Regulator Output ((VCC1))

5V / 750 mA

Voltage Regulator Output ((VCC2))

5V / 100 mA

Wake-up Inputs

Wake Pins, CAN, LIN

Apps

Automotive gateway, Automotive body control module (BCM), DC-DC converter high-voltage, EV charging connectivity

Features

  • Very low quiescent in SBC Stop Mode
  • Periodic Cyclic Wake in SBC Normal
  • SMPS 750mA (DC/DC buck) V regulator 5V
  • DC/DC Boost for low battery supply V
  • Low-Drop Voltage Regulator 5V/100mA
  • High-Speed CAN IS011898-2:2016
  • 2 LIN Transceivers LIN2.2, SAE J2602
  • Compliant with ATV Hardware Requirements
  • Universal High-Voltage Wake Input
  • Configurable wake-up sources
  • Reset Output
