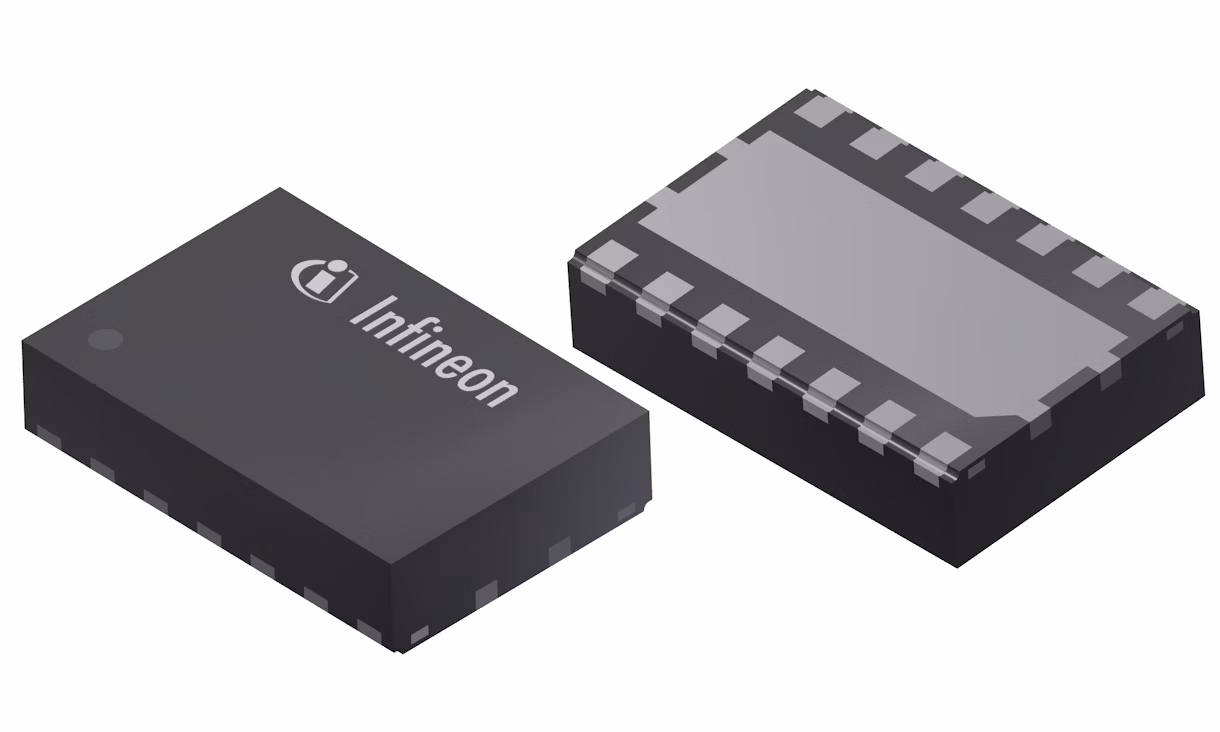

TLE9254LC

Infineon Technologies TLE9254LC Product Info

16 April 2026 0

Additional Features	WK
Base Product	TLE925x
Bus Wake-Up Capability	Yes
Family	CAN FD 5MBit/s
Features	WK
Language	IBIS
Planned to be available until at least	n.a
Product Category	Transceivers
Qualification	Automotive
Quiescent Current	11 µA per channel at 105°C
Standards	ISO11898-2
Transmission Rate max	5 MBit/s
Type	CAN FD

Compliant to ISO 11898-2:2016
Dual channel CAN FD transceiver with very low quiescent current in stand-by mode
Wide common mode range for electromagnetic immunity (EMI)
Very low electromagnetic emission (EME) allows the use without additional common mode choke
Excellent ESD robustness
Very high CAN FD symmetry to support CAN FD data frames up to 5 MBit/s
Extended supply range on V_CC
CAN short circuit proof to ground, to battery and to V_CC
TxD timeout function
Low CAN bus leakage current in power-down state
Overtemperature protection
Protected against automotive transients according to ISO 7637 and SAE J2962-2
Stand-by mode with bus wake-up pattern function
Wake-up indication on the RxD output
Green Product (RoHS compliant)
Available in PG-TSON-14 which supports solder joint requirements for automated optical inspection (AOI)
