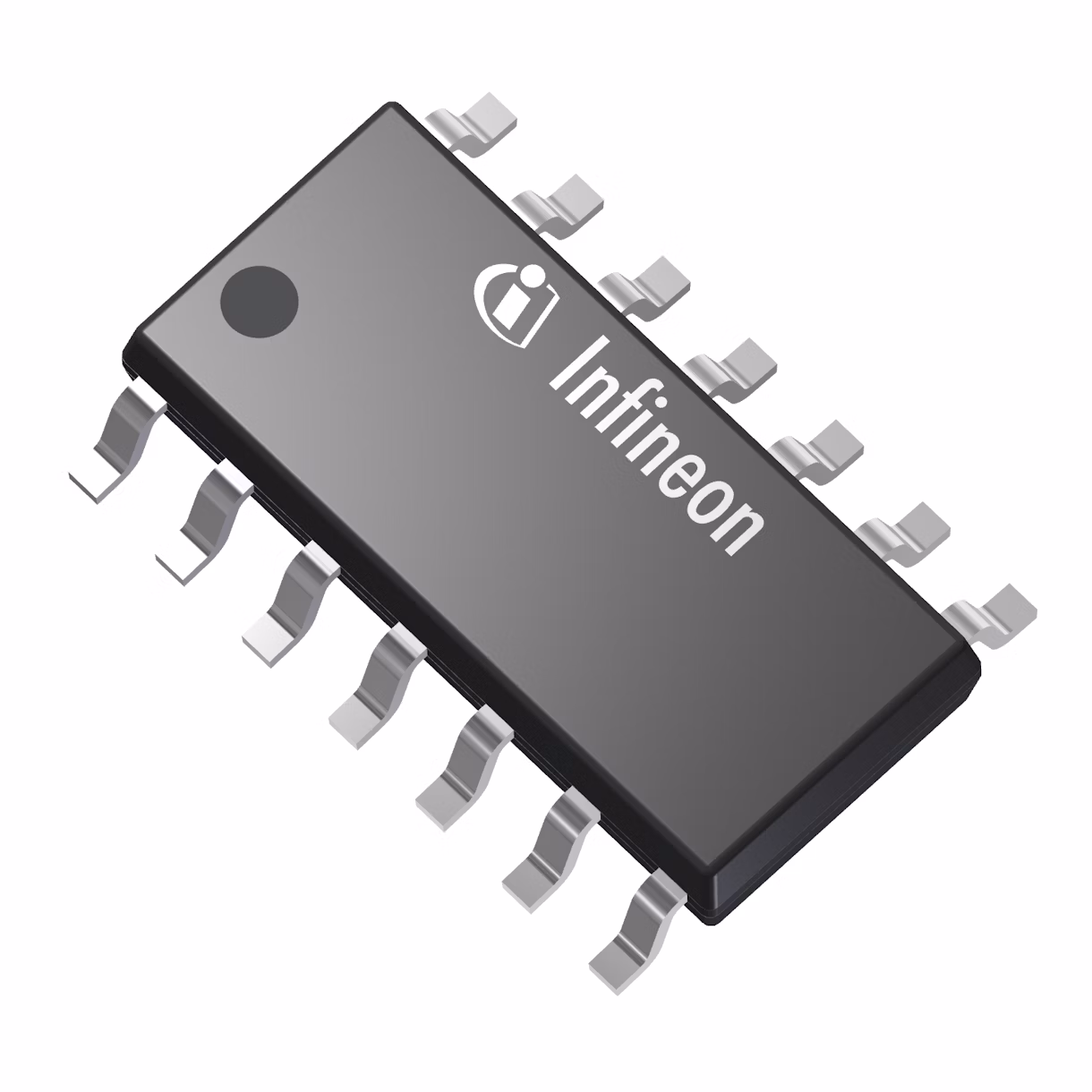

TLE7269G
  • TLE7269G

TLE7269G

The TLE7269G is designed for in-vehicle networks with data rates from 2.4 kBaud to 20 kBaud, compliant with LIN specifications and SAE J2602. It features two stand-alone LIN transceivers, offering very high ESD robustness, low electromagnetic emission, high EMI immunity, and very low current consumption in sleep mode with wake-up function. This AEC qualified green product is suitable for various automotive applications.

Infineon Technologies TLE7269G Product Info

16 April 2026 0

Parameters

Additional Features

2 x LIN trx, INH, EN, WK, Vio

Bus Wake-Up Capability

Yes

Features

INH Output, 2 x LIN TrX, EN, WK, Vio, Multiple Channel

Package

PG-DSO-14

Qualification

Automotive

Quiescent Current

< 10 µA sleep mode

Standards

LIN 1.2, 1.3, 2.0, 2.1, SAEJ2602

Supply Voltage

3.3 V, 5 V

Transmission Rate max

20 kBit/s

Type

LIN

Wake-up Inputs

Bus Wake-up, Wake-up Pin

Features

  • Two stand-alone LIN transceivers up to 20 kBaud transmission rate
  • Pin compatible to single LIN transceivers (e.g. TLE7259-2GE/GU)
  • Compliant to LIN specification 1.3, 2.0, 2.1 and SAE J2602
  • Very high ESD robustness, ± 8 kV according to IEC61000-4-2
  • Optimized for low electromagnetic emission (EME)
  • Optimized for high immunity against electromagnetic interference (EMI)
  • Very low current consumption in sleep mode with Wake-Up function
  • Wake-up source detection on Wake-Up disable function
  • Very low leakage current on the BUS output
  • Control output for voltage regulator
  • Digital I/O levels compatible for 3.3 V and 5 V microcontrollers
  • Bus short to VBat protection  and bus short to GND handling
  • Overtemperature and undervoltage protection
  • Flash mode and low-slope mode
  • Green Product (RoHs compliant)
  • AEC compliant

Description

  • Reduced layout efforts with placement options
