TLE7250XLE
  • TLE7250XLE

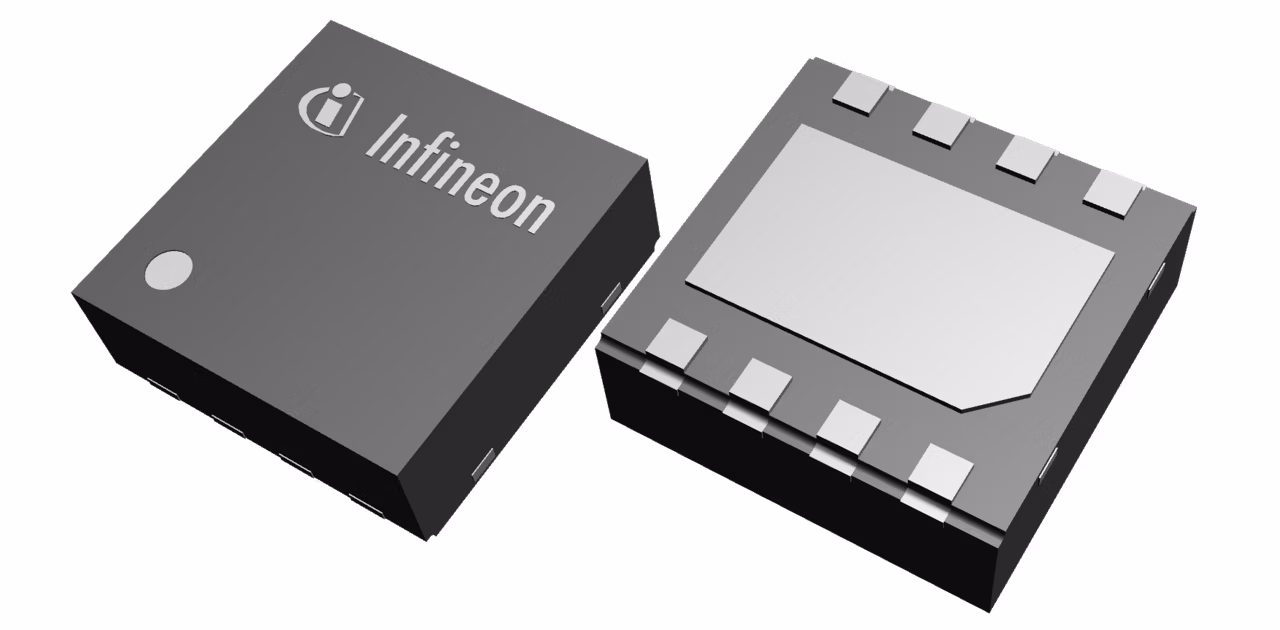

TLE7250XLE

Introducing the TLE7250X, driving signals to the CAN bus, safeguarding the microcontroller, supporting CAN FD up to 2 MBit/s. With Infineon Smart Power Technology SPT providing ESD and electromagnetic immunity, ideal for mixed supply HS CAN networks, TLE7250XLE and TLE7250XSJ. AEC qualified for automotive use, features two modes and optimized slew rates.

Infineon Technologies TLE7250XLE Product Info

16 April 2026 1

Parameters

Additional Features

RM; Vio

Base Product

TLE725x

Bus Wake-Up Capability

No

Family

CAN FD 2MBit/s

Features

Vio, Tiny Package, Receive Only Mode, RM

Planned to be available until at least

n.a

Product Category

Transceivers

Qualification

Automotive

Quiescent Current

N/A, no standby mode

Standards

ISO11898-2

Supply Voltage

5 V, 3.3 V

Transmission Rate max

2 MBit/s

Type

CAN, CAN FD

Wake-up Inputs

None

Features

  • Fully compliant to ISO11898-2
  • Wide common mode range for electromagnetic immunity (EMI)
  • Very low electromagnetic emission (EME)
  • Excellent ESD robustness
  • Guaranteed loop delay symmetry to support CAN FD data frames up to 2 MBit/s
  • V IO input for voltage adaption to the microcontroller supply
  • Extended supply range on V CC and V IO supply
  • CAN short circuit proof to ground, battery and V CC
  • TxD time-out function
  • Low CAN bus leakage current in power-down state
  • Overtemperature protection
  • Protected against automotive transients
  • Receive-only mode
  • Green Product (RoHS compliant)
  • Two package variants: PG-DSO-8 and PG-TSON-8
  • AEC Qualified
