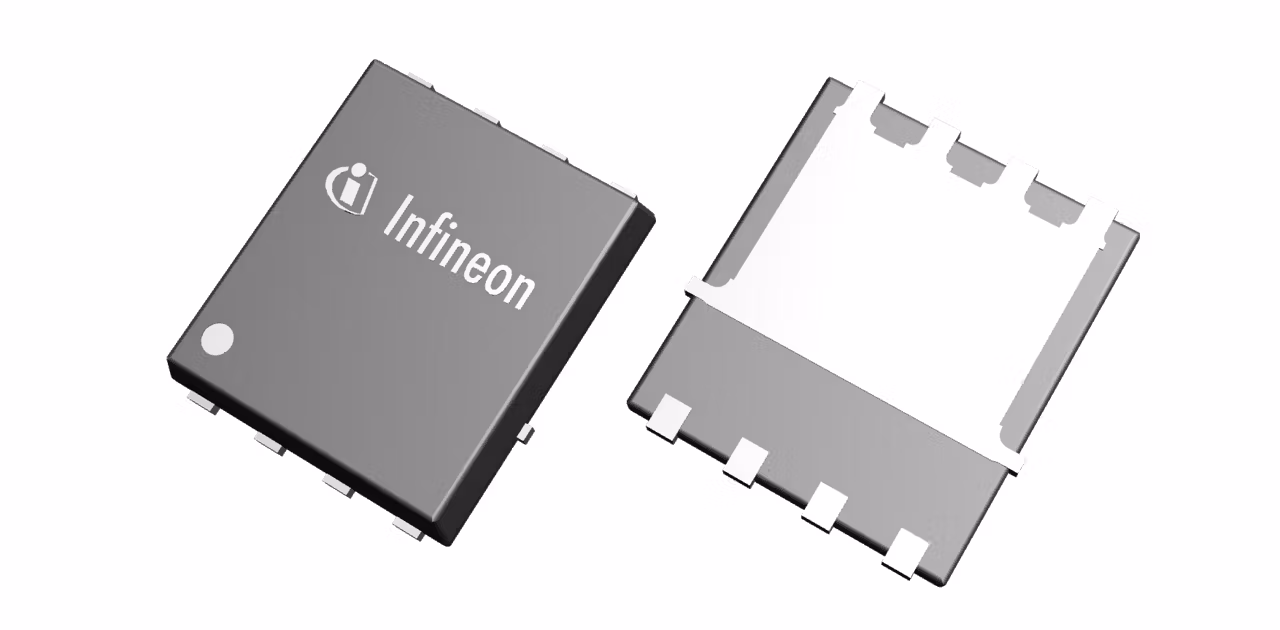

BSC0502NSI
  • BSC0502NSI

BSC0502NSI

With the OptiMOS™ 5 25V and 30V product family, Infineon offers benchmark solutions by enabling highest power density and energy efficiency, both in standby and full operation.

Infineon Technologies BSC0502NSI Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.34

Ciss

1200 pF

Coss

420 pF

ID (@25°C) max

100 A

IDpuls max

400 A

Mounting

SMD

Operating Temperature range

-55 °C to 150 °C

Package

SuperSO8 5x6

Pin Count

8 Pins

Polarity

N

Ptot max

43 W

QG (typ @4.5V)

9 nC

QG (typ @10V)

19 nC

RDS (on) (@4.5V) max

2.8 mΩ

RDS (on) (@4.5V LL) max

2.8 mΩ

RDS (on) (@10V) max

2.3 mΩ

RthJA max

50 K/W

RthJC max

2.9 K/W

Rth

2.9 K/W

Special Features

Logic Level, Monolithically Integrated Schottky-like Diode

VDS max

30 V

VGS(th) range

1.2 V to 2 V

VGS(th)

1.84 V

Apps

Cordless power tools and outdoor power equipment

Features

  • Best-in-class on-state resistance
  • Benchmark switching performance
  • RoHS compliant and halogen free
  • Optimized EMI behavior

Description

  • Highest efficiency
  • Highest power density
  • Reduction of overall system costs
  • Operation at high-switching frequency
