ISCH92N04NM7VSC
  • ISCH92N04NM7VSC

ISCH92N04NM7VSC

Active and preferred

The OptiMOS™ 7 40V motor-drives optimized offers up to 3x wider Safe Operating Area vs. OptiMOS™ 6, providing highest reliability. An increased threshold voltage of 3.2 V offers enhanced induced turn-on ruggedness. 70% lower transconductance enables ease of use by improving current sharing, reducing voltage overshoot and an inherent short circuit current limitation characteristic boosting performance while handling harsh operation conditions.

Infineon Technologies ISCH92N04NM7VSC Product Info

16 April 2026 0

Parameters

ID (@25°C) max

289 A

IDpuls max

1156 A

Operating Temperature range

-55 °C to 175 °C

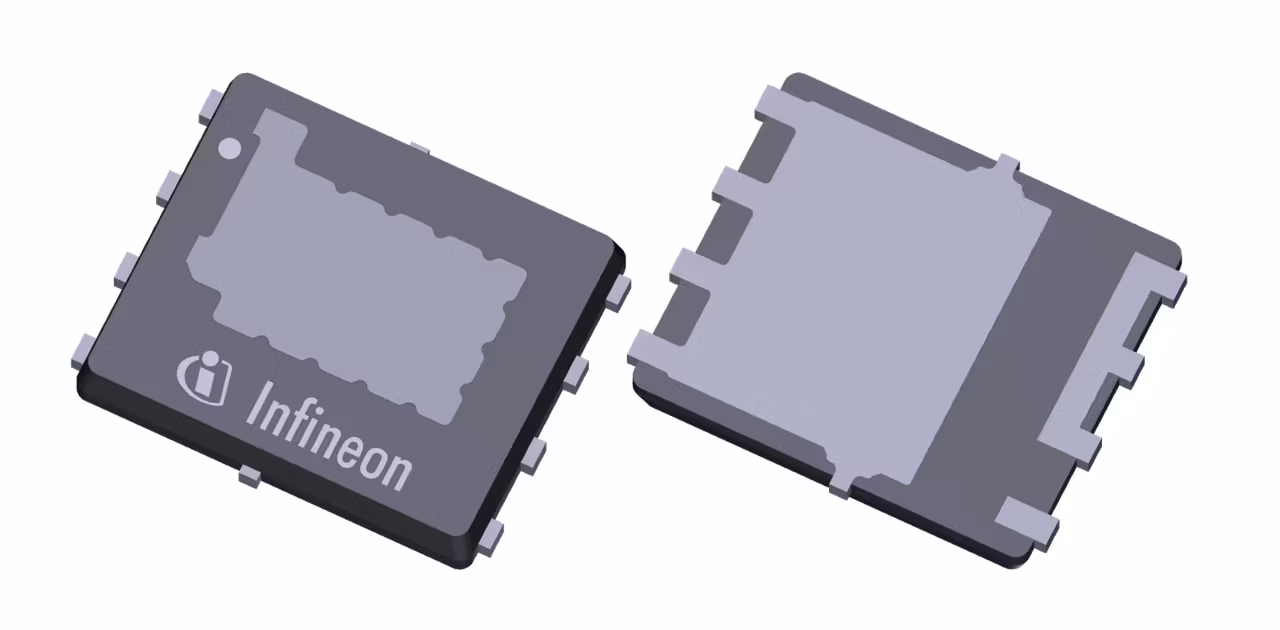

Package

SuperSO8 5x6 DSC

Polarity

N

Ptot max

150 W

QG (typ @10V)

65 nC

RDS (on) (@10V) max

0.92 mΩ

Special Features

Dual-Side Cooling

VDS max

40 V

VGS(th) range

2.4 V to 3.2 V

VGS(th)

2.75 V

Apps

Cordless power tools and outdoor power equipment, Vacuum cleaners, Non-stackable BMS solutions

Features

  • Price-Performance optimized
  • Up to 3x wider SOA
  • Short-circuit current limitation
  • Higher threshold voltage Vth up to 3.2V
  • Controlled Transconductance gfs
  • High performance DSC package

Description

  • Cost-effecive solutions
  • Enhanced efficiency
  • Improved robustness in harsh conditions
  • Improved pulse current handling
  • Immunity vs. Short-circuit events
  • Immunity v, parasitic turn-on events
  • Intrinsic short current limitation
  • Improved slew rate control
  • Better EMI behavior and ease of use
  • Improved thermal performance, lower Rth
