IRL1004
  • IRL1004

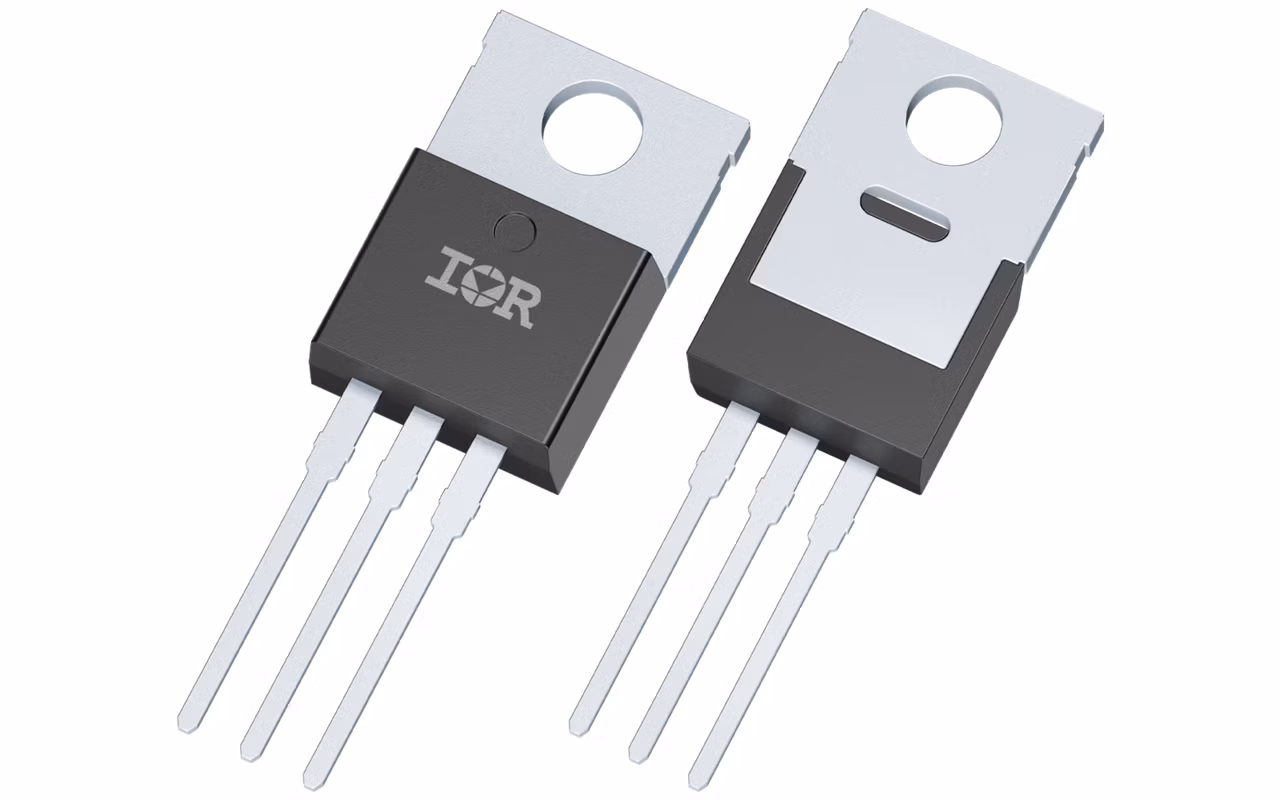

IRL1004

Infineon Technologies IRL1004 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.71

ID (@25°C) max

130 A

Mounting

THT

Operating Temperature range

-55 °C to 175 °C

Package

TO-220

Polarity

N

Ptot max

200 W

Qgd

28.7 nC

QG (typ @4.5V)

66.7 nC

RDS (on) (@10V) max

6.5 mΩ

RDS (on) (@4.5V) max

9 mΩ

RthJC max

0.75 K/W

Tj max

175 °C

VDS max

40 V

VGS(th) min

1 V

VGS(th)

1 V

VGS max

16 V

Features

  • Planar cell structure for wide SOA
  • Optimized for broadest availability from distribution partners
  • Product qualification according to JEDEC standard
  • Silicon optimized for applications switching below <100kHz
  • Industry standard surface-mount power package
  • High-current rating
  • Logic level

Description

  • Increased ruggedness
  • Wide availability from distribution partners
  • Industry standard qualification
  • High performance in low frequency applications
  • Drop-in replacement to existing devices
  • High current capability
  • Capable of 4.5V gate drive
