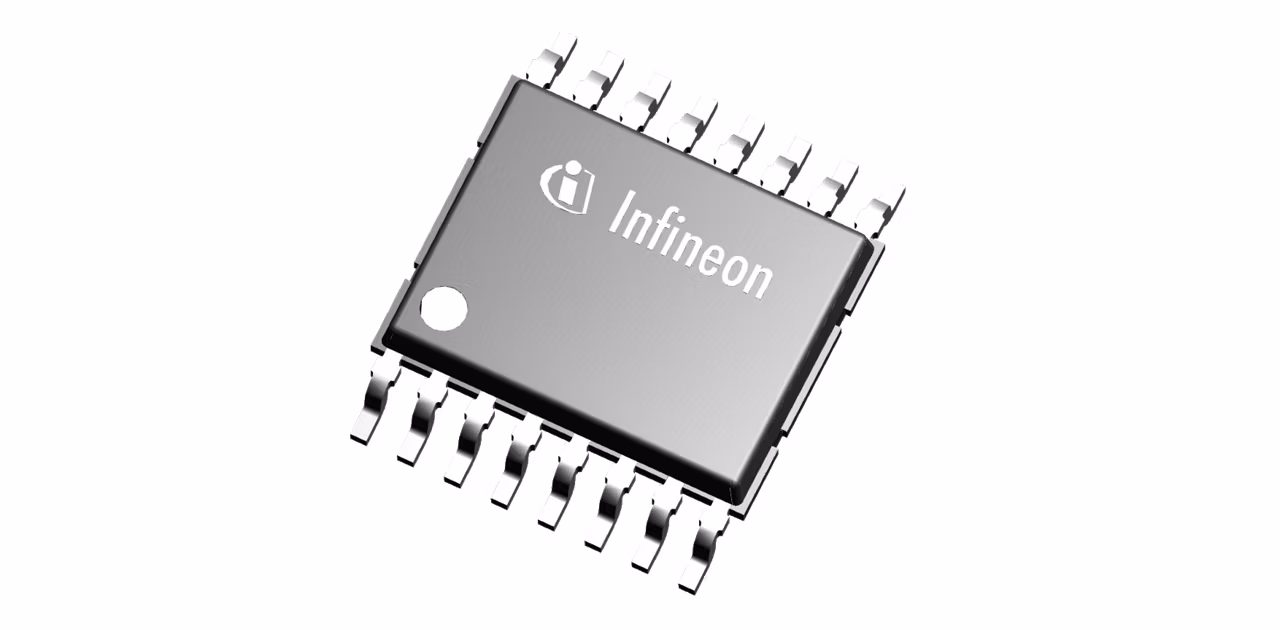

TLE5009A16D E1210
  • TLE5009A16D E1210

TLE5009A16D E1210

Active and preferred

Introducing XENSIV™ TLE5x0916(D) angle sensors with analog outputs. Detect magnetic field orientation via sine and cosine components using MR elements. Output range: 0-180° (AMR), 0-360° (GMR). Options for single/dual die, GMR/AMR sensors available, ensuring high precision. 3.3 V, TCO provided. Derivatives: TLE5009A16, TLE5009A16D, TLE5109A16, TLE5109A16D, TLE5309D. Safety manual available on request.

Infineon Technologies TLE5009A16D E1210 Product Info

16 April 2026 0

Parameters

Classification

ISO 26262-ready

Interfaces

Analog

ISO 26262

ready

Magnetic field range

21 mT to 50 mT

Package

Dual SMD

Planned to be available until at least

2034

Supply Voltage range

-0.5 V to 6.5 V

Supply Voltage ((V))

-0.5-6.5

Technology

GMR

Temperature range

-40 °C to 125 °C

Apps

Electric power steering (EPS)

Features

  • GMR principle
  • Separate supply pins for top and bottom
  • Low current consumption & quick start up
  • 360° measurement revolution counter
  • Optimized for circuits with 3.3 V or 5 V
  • Air gap immune MR sensing principle
  • Pre-amplified output signals
  • Diverse red. comb. of GMR+AMR sensor
  • High accuracy: 0.1° angle error
