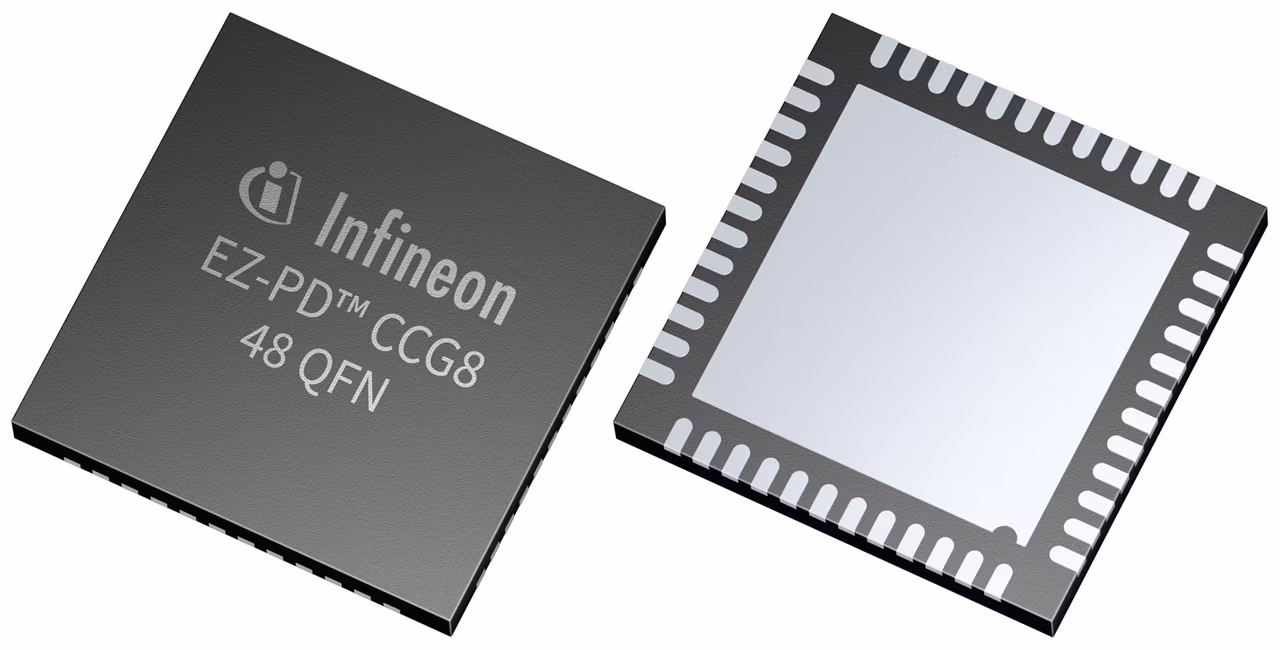

CYPD8125-48LDXIT

Active and preferred

Infineon Technologies CYPD8125-48LDXIT Product Info

16 April 2026 0

# of ports	Single
Applications	Desktops, Notebooks
Family	EZ-PD™ CCG8
Flash	256 kByte
GPIOs	26
Operating Temperature range	-40 °C to 85 °C
Operating Voltage range	2.8 V to 30 V
Package Type	48-pin QFN
Processor Type	Arm® Cortex® M0+
Product Category	PD controllers
Product Description	Single port Type-C controller
Protection features (OVP, OCP, SCP and ESD)	N
Software Tools	ModusToolbox™
SRAM	32 kByte
Temperature grade	Industrial
USB Standard	USB-PD 3.1
VBUS Short Protection	Y
VCONN FET	Y

USB Type-C and Power Delivery 3.1 with EPR up to 28V supporting USB3 and USB4, Thunderbolt, DisplayPort Alternate Mode platforms
32-bit, 48 MHz Arm® Cortex®-M0 Plus processor with integrating a complete Type-C transceiver including the Type-C termination resistors Rp, Rd, and dead battery Rd termination
Integrated load switch controller for driving NFETs on VBUS provider path
Slew rate controller turn-on the VBUS provider path
Configurable hardware-controlled VBUS overvoltage, undervoltage, overcurrent, short circuit, reverse current protection, and thermal shutdown
VBUS high-side current sense amplifier capable of measuring current across 5-mW series resistance on the provider path
Integrated 3:1 SBU Muxes for Alternate modes and closed chasis debug
Integrated digital blocks
Four timers, counters, PWMs, and up to 23 GPIOs
Four SCBs for configurable master/slave I²C, SPI or UART
Integrated analog blocks
Integrated high-voltage 28 V-regulator
VCONN FETs
High-side current sense amplifier across 5 ohms
VBUS discharge NFET
System-level fault protection
Over-current, over-voltage, under-voltage, reverse-current and short-circuit protection on VBUS provider path
VCONN over-current protection
Package: 48-QFN (6x6 mm)
Packing type: tape and reel

Highly integrated Dual/Single port USB-C PD controller with 28V EPR integrated and up to 48 V with external BOM
Ideal for EPR-based DRP solution
