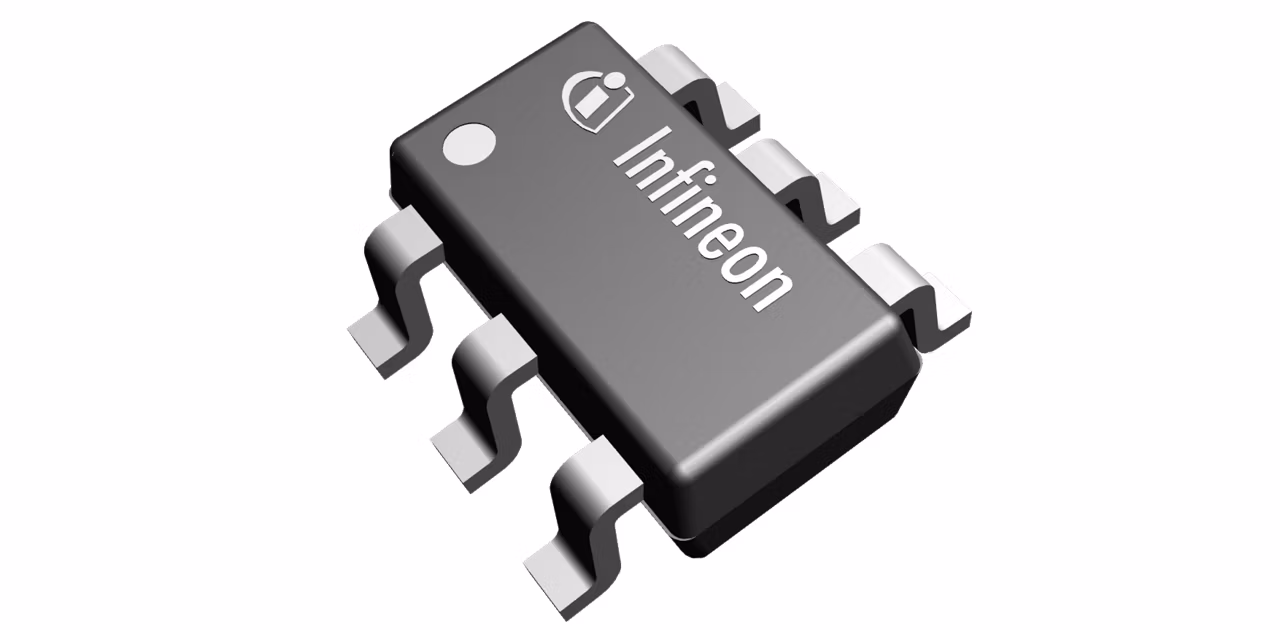

TLE4966V-1G
  • TLE4966V-1G

TLE4966V-1G

Active and preferred

TLE4966V-1G magnetic sensor: Detects rotation direction & speed of pole wheel. On-chip Hall plates cancel mounting uncertainties & reduce tolerances. Built-in direction detection provides reliable signals. Speed signals can directly feed into microcontroller. Monolithic solution ensures minimal tolerances & high reliability.

Infineon Technologies TLE4966V-1G Product Info

16 April 2026 0

Parameters

Bhyst

5 mT

Bop

2.5 mT

Brp

-2.5 mT

Interfaces

open collector

Product Description

High precision automotive qualified dual Hall latch in a gullwing package

Supply Voltage range

3.5 V to 32 V

Temperature range

-40 °C to 150 °C

Type

Double Hall

Features

  • In-plane sensing for parallel encoder
  • Low current consumption
  • Direction detection
  • Speed output for index counting
  • 3.5V to 32V operating supply voltage
  • Operating from unregulated power supply
  • Active Error Compensation
  • Speed output for index counting apps
  • Low drift of magnetic thresholds
  • Low jitter (typ. 0.3us)
