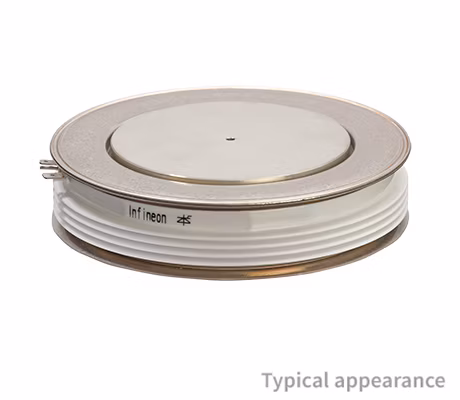

T3401N36TOF VT
  • T3401N36TOF VT

T3401N36TOF VT

Active and preferred

Phase control thyristor 3600 V, 3401 A disc assembled in high reliable, robust and hermetic sealed ceramic housings with a dia of 150 mm and a height of 35 mm.

Infineon Technologies T3401N36TOF VT Product Info

16 April 2026 0

Parameters

Clamping force [kn] range

63 to 91

Configuration

Electrical Triggered Phase Control Thyristor

Housing

Disc dia 150mm height 26mm / Ceramic

ITAVM/TC [A/°C] (@180° el sin)

3560/85

ITAVM

3560 (180 ° el sin)

ITSM [A] (@10ms, Tvj max)

87000

ITSM

87000 A

RthJC [K/kW] (@180° el sin) max

5

tq [µs]

300

Tvj [°C] max

125

VDRM / VRRM [V]

3600

VDRM/ VRRM (V)

3600 V

VT/IT [V/kA] (@Tvj max)

1,40/4.0

∫I2dt [A²s · 103] (@10ms, Tvj max)

37850

Features

  • Full blocking capability 50/60 Hz
  • High DC blocking stability
  • High surge current capability
  • High case non-rupture current
  • High di/dt capability
