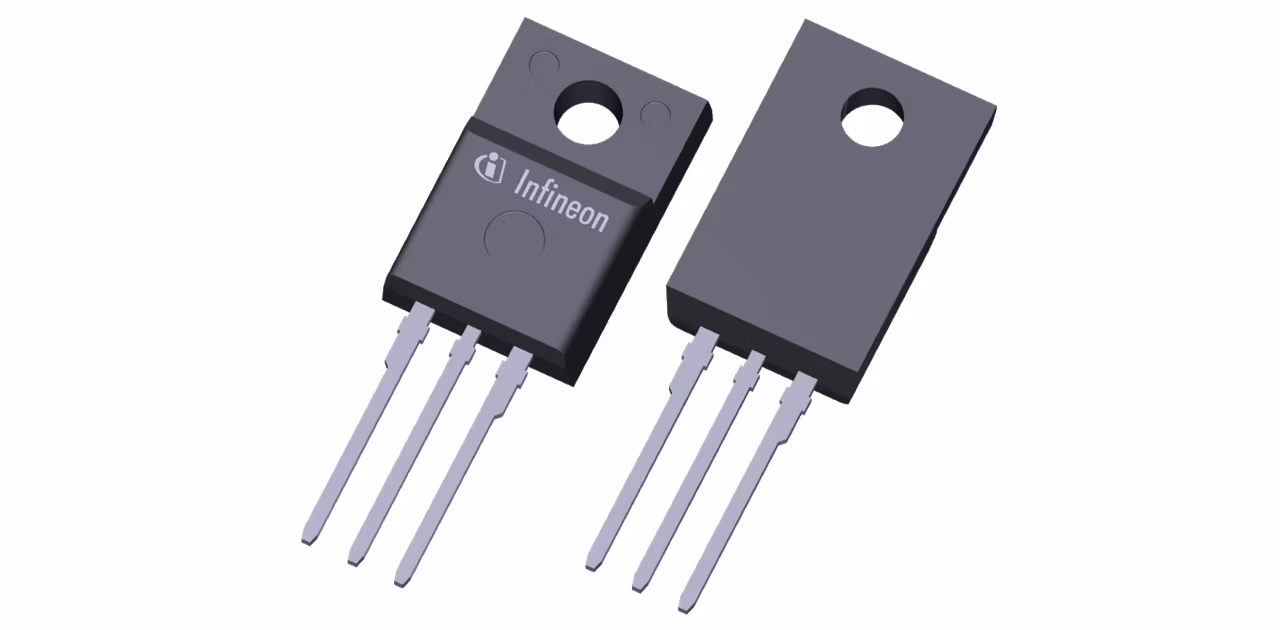

IPA037N08N3 G
  • IPA037N08N3 G

IPA037N08N3 G

OptiMOS™ is the market leader in highly efficient solutions for power generation (e.g. solar micro inverter), power supply (e.g. server and telecom) and power consumption (e.g. electric vehicle).

Infineon Technologies IPA037N08N3 G Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

1.79

Ciss

6100 pF

Coss

1640 pF

ID (@25°C) max

75 A

IDpuls max

300 A

Operating Temperature range

-55 °C to 175 °C

Package

TO-220 FullPAK

Polarity

N

Ptot max

41 W

QG (typ @10V)

88 nC

RDS (on) (@10V) max

3.7 mΩ

Rth

3.7 K/W

VDS max

80 V

VGS(th) range

2 V to 3.5 V

VGS(th)

2.8 V

Features

  • Optimized technology for DC-DC converters
  • Excellent gate charge x R DS(ON) product (FOM)
  • Superior thermal resistance
  • Dual sided cooling
  • Low parasitic inductance
  • Low profile (<0,7mm)
  • N-channel, normal level
  • 100% avalanche tested
  • Pb-free plating; RoHS compliant
