T1620N65TOF PR
  • T1620N65TOF PR

T1620N65TOF PR

Active and preferred

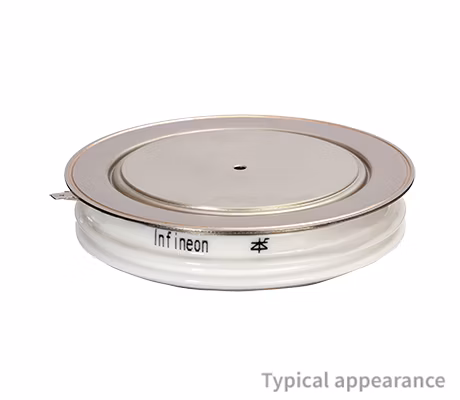

The T1620N Phase Control Thyristor discs are assembled in high reliable, robust and hermetic sealed ceramic housings with a dia of 111mm and a height of 26mm.

Infineon Technologies T1620N65TOF PR Product Info

16 April 2026 0

Parameters

Clamping force [kn] range

40 to 65

Configuration

Electrical Triggered Phase Control Thyristor

Housing

Disc dia 111mm height 26mm / Ceramic

ITAVM/TC [A/°C] (@180° el sin)

1613/85

ITAVM

1613 / 85° (180° el sin)

ITSM [A] (@10ms, Tvj max)

32000

ITSM

32000 A

rT [mΩ] (@Tvj max) max

0.43

RthJC [K/kW] (@180° el sin) max

8.1

tq [µs]

1000

Tvj [°C] max

125

VDRM / VRRM [V]

6500

VDRM/ VRRM (V)

6500 V

VT/IT [V/kA] (@Tvj max)

3.3/4.5

VT0 [V] (@Tvj max) max

1.35

∫I2dt [A²s · 103] (@10ms, Tvj max)

5120

Features

  • Full blocking capability 50/60 Hz
  • High DC blocking stability
  • High surge current capability
  • High turn-on di/dt capability
  • High dv/dt capability
