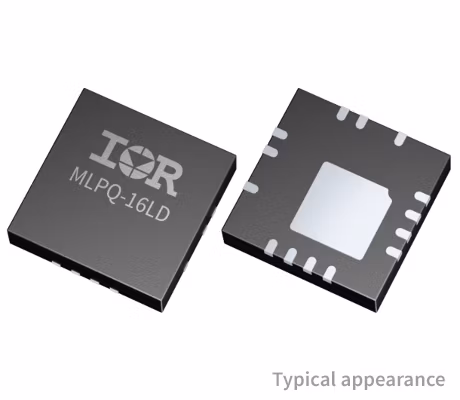

IRS2113M
  • IRS2113M

IRS2113M

Active and preferred

EiceDRIVER™ 600 V high and low side gate driver IC with typical 2.5 A source and 2.5 A sink currents in MLPQ 4X4 14L package for IGBTs and MOSFETs . Also available in 14 Lead PDIP and 16 Lead SOICWB.

Infineon Technologies IRS2113M Product Info

16 April 2026 0

Parameters

Channels

2

Configuration

High-side and low-side

Input Vcc range

10 V to 20 V

Isolation Type

Functional levelshift JI (Junction Isolated)

Output Current (Source)

2.5 A

Output Current (Sink)

2.5 A

Qualification

Industrial

Turn Off Propagation Delay

120 ns

Turn On Propagation Delay

130 ns

VBS UVLO (Off)

8.2 V

VBS UVLO (On)

8.6 V

VCC UVLO (Off)

8.2 V

VCC UVLO (On)

8.5 V

Voltage Class

600 V

Apps

Power tools, Home appliances, Photovoltaic, Robotics, Motor control, Power conversion

Features

  • Floating driver for bootstrap op.
  • Fully operational to +600 V
  • Tolerant to neg. transient volt.
  • dV/dt immune
  • Gate drive supply: 10 V to 20 V
  • Undervolt. lockout for both channel
  • 3.3 V input logic compatible
  • Sep. logic supply: 3.3 V to 20 V
  • Logic & power ground +/- 5 V offset
  • CMOS Schmitt-triggered inputs
  • C-by-c edge-trigg. shutdown logic
  • Matched prop. delay for both chan.
