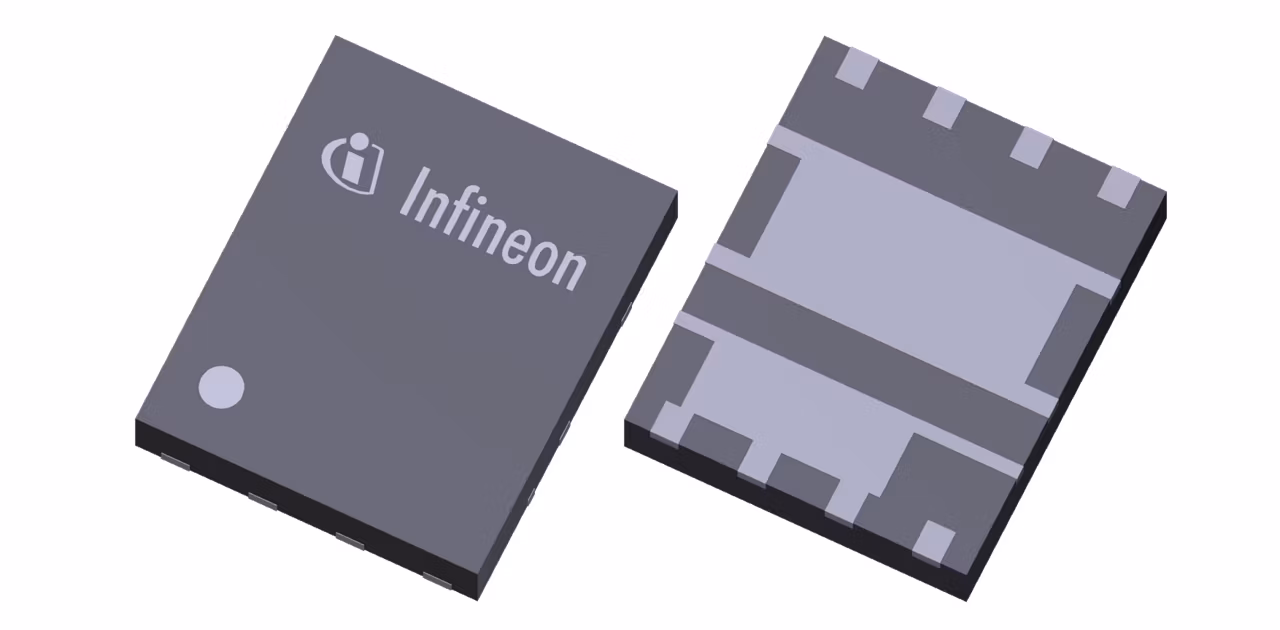

BSC0993ND
  • BSC0993ND

BSC0993ND

With the OptiMOS™ 5 30V product family, Infineon offers benchmark solutions by enabling highest power density and energy efficiency, both in standby and full operation.

Infineon Technologies BSC0993ND Product Info

16 April 2026 11

Parameters

Budgetary Price €/1k

0.3

ID (@25°C) max

17 A

IDpuls max

68 A

Mounting

SMD

Operating Temperature range

-55 °C to 150 °C

Package

Symmetrical Dual 5x6

Polarity

N+N

Ptot max

2.5 W

Qgd

2 nC

QG (typ @10V)

13 nC

QG (typ @4.5V)

6.7 nC

RDS (on) (@10V) max

5 mΩ

RDS (on) (@4.5V) max

7 mΩ

RDS (on) (@4.5V LL) max

7 mΩ

RthJA max

50 K/W

RthJC max

4.2 K/W

Rth

4.2 K/W

Special Features

Logic Level

VDS max

30 V

VGS(th) range

1.2 V to 2 V

Features

  • Best-in-class on-state resistance
  • Benchmark switching performance (lowest figure of merits R  on x Q  g and
    R  on x Q  gd)
  • RoHS compliant and halogen free
  • Optimized EMI behavior (integrated
    damping network)

Description

  • Highest efficiency
  • Reduction of overall system costs
  • Operation at high-switching frequency
