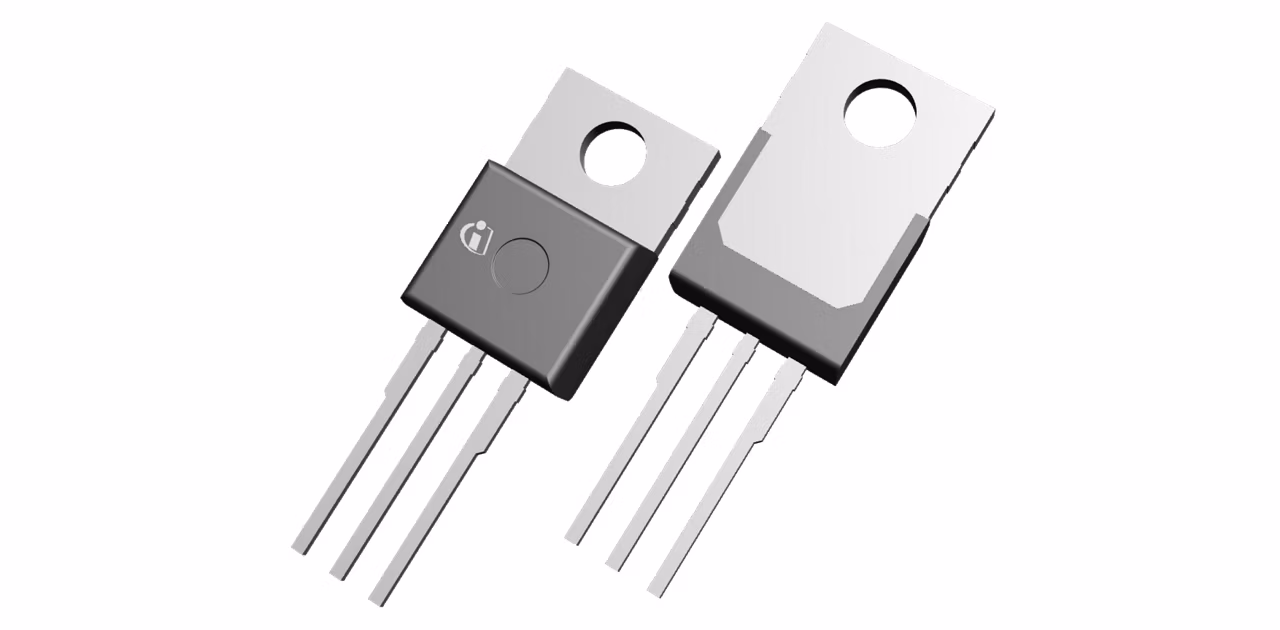

IPP076N15N5
  • IPP076N15N5

IPP076N15N5

Active and preferred

The OptiMOS™ 5 150 V power MOSFETs are particularly suitable for low voltage drives such as forklift and e-scooter, as well as telecom and solar applications. The products offer a breakthrough reduction in RDS(on) (up to 25 percent compared to the next best alternative in SuperSO8) and Q rr without compromising FOMgd and FOM OSS, effectively reducing design effort whilst optimizing system efficiency.

Infineon Technologies IPP076N15N5 Product Info

16 April 2026 0

Parameters

Battery voltage

72-96 V

Budgetary Price €/1k

1.13

Ciss

3600 pF

Coss

900 pF

ID (@25°C) max

112 A

IDpuls max

448 A

Mounting

THT

Operating Temperature range

-55 °C to 175 °C

Package

TO-220

Pin Count

3 Pins

Polarity

N

Ptot max

214 W

Qgd

10 nC

QG (typ @10V)

49 nC

RDS (on) (@10V) max

7.6 mΩ

RthJA max

62 K/W

RthJC max

0.7 K/W

Rth

0.7 K/W

VDS max

150 V

VGS(th) range

3 V to 4.6 V

VGS(th)

3.8 V

Apps

Telecommunications infrastructure, DIN rail power supply solutions, Uninterruptible power supplies (UPS), Offline UPS - high frequency transformer

Features

  • Firm FOMgd and FOMoss with lower RDS(on)
  • Lower output charge
  • Ultra-low reverse recovery charge
  • Increased commutation ruggedness
  • Higher switching frequency possible

Description

  • Reduced paralleling
  • Higher power density designs
  • More rugged products
  • System cost reduction
  • Improved EMI behavior
