IR2132S
  • IR2132S

IR2132S

Active

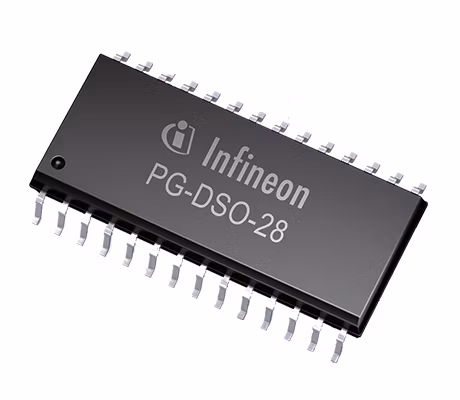

600 V Three Phase Driver IC with typical 0.25 A source and 0.5 A sink currents in 28 Lead SOICWB package for IGBTs and MOSFETs. Also available in 28 Lead PDIP and 44 Lead PLCC.

Infineon Technologies IR2132S Product Info

16 April 2026 0

Parameters

Channels

6

Configuration

Three Phase

Input Vcc range

10 V to 20 V

Isolation Type

Functional levelshift JI (Junction Isolated)

Output Current (Sink)

0.5 A

Output Current (Source)

0.25 A

Qualification

Industrial

Turn Off Propagation Delay

425 ns

Turn On Propagation Delay

675 ns

VBS UVLO (Off)

7.95 V

VBS UVLO (On)

8.35 V

VCC UVLO (Off)

8.7 V

VCC UVLO (On)

9 V

Voltage Class

600 V

Apps

Medium voltage (MV) drive

Features

  • Floating channel for bootstrap op.
  • Fully operational to +600 V
  • Tolerant to neg. transient volt.
  • dV/dt immune
  • Gate drive supply: 10 V to 20 V
  • Undervoltage lockout
  • Typical deadtime 0.8 µs (IR2132)
  • Typical deadtime 2.5 µs (IR2130)
  • Over-current shutdown
  • Independent half-bridge drivers
  • Matched prop. delay for all chan.
  • 2.5 V logic compatible
