IR2104S
  • IR2104S

IR2104S

Active

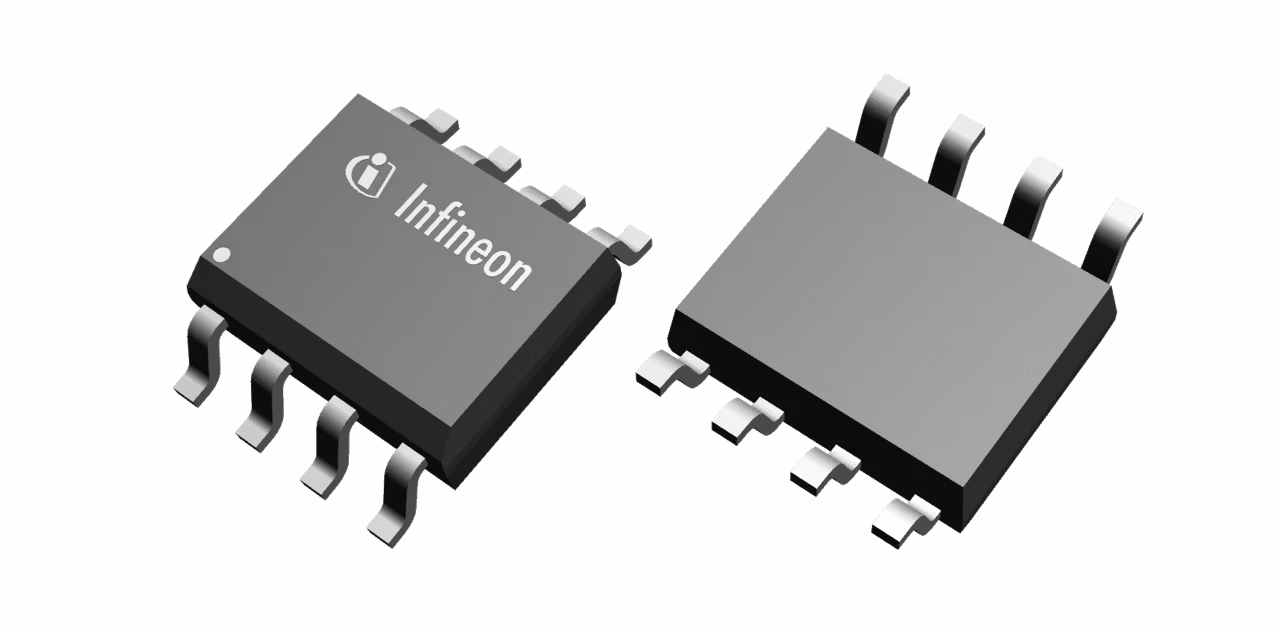

EiceDRIVER™ 600 V half-bridge gate driver IC with typical 0.21 A source and 0.36 A sink currents in 8 Lead SOIC package for IGBTs and MOSFETs with level-shift technology. Also available in 8 Lead PDIP .

Infineon Technologies IR2104S Product Info

16 April 2026 0

Parameters

Channels

2

Configuration

Half-Bridge

Input Vcc range

10 V to 20 V

Isolation Type

Functional levelshift JI (Junction Isolated)

Output Current (Sink)

0.36 A

Output Current (Source)

0.21 A

Qualification

Industrial

Turn Off Propagation Delay

150 ns

Turn On Propagation Delay

680 ns

VCC UVLO (Off)

8.2 V

VCC UVLO (On)

8.9 V

Voltage Class

600 V

Apps

Photovoltaic

Features

  • Floating channel for bootstrap op.
  • Fully operational to +600 V
  • Tolerant to neg. transient volt.
  • dV/dt immune
  • Gate drive supply: 10 V to 20 V
  • Undervoltage lockout
  • 3.3, 5, & 15 V logic input compati.
  • Cross-conduction prevention logic
  • Matched prop. delay for both chan.
  • Internal set deadtime
  • Highside out. in phase with HIN in.
  • Shutdown input turns off both chan.
