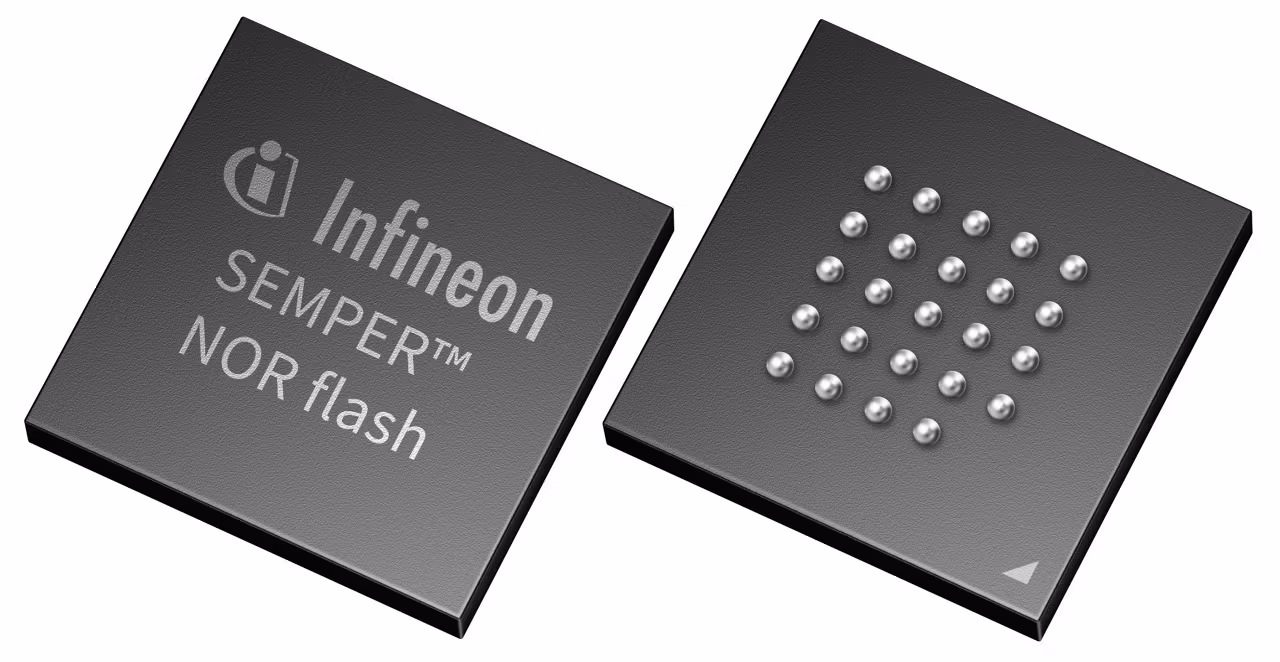

S28HS512TGABHM010
  • S28HS512TGABHM010

S28HS512TGABHM010

Active and preferred

The S28HS512TGABHM010 is a 512 Mb SEMPER™ NOR flash memory with a high-speed octal interface, supporting SDR up to 200 MBps and DDR up to 400 MBps at 1.8 V. Built on 45-nm MIRRORBIT™ technology, it features flexible sector architecture, ISO 26262 ASIL-B compliance, and robust data integrity with ECC and CRC. Endurance Flex enables up to 1,280,000 program-erase cycles and 25-year retention. Designed for automotive AEC-Q100 Grade 1, it is ideal for safety-critical applications.

Infineon Technologies S28HS512TGABHM010 Product Info

16 April 2026 0

Parameters

Classification

ISO 26262-compliant

Density

512 MBit

Family

HS-T

Interface Bandwidth

400 MByte/s

Interface Frequency (SDR/DDR) (MHz)

200 / 200

Interfaces

Octal

Lead Ball Finish

Sn/Ag/Cu

Operating Temperature range

-40 °C to 125 °C

Operating Voltage range

1.7 V to 2 V

Operating Voltage

1.8 V

Peak Reflow Temp

260 °C

Planned to be available until at least

2037

Qualification

Automotive

Features

  • 45-nm MIRRORBIT™ stores 2 bits/cell
  • Uniform and hybrid sector architectures
  • 256/512-byte page programming buffer
  • 1024-byte OTP secure silicon array
  • Octal interface, JEDEC JESD251 compliant
  • SDR up to 200 MBps, DDR up to 400 MBps
  • Data strobe (DS) for high-speed read
  • Functional safety ISO26262 ASIL B/D ready
  • Endurance Flex wear leveling architecture
  • Interface and data integrity CRC
  • Built-in ECC: corrects 1-bit, detects 2-bit
  • Legacy and advanced sector protection

Description

  • High density with 2 bits/cell saves board
  • Flexible sectoring for varied application
  • Large buffer boosts programming efficiency
  • OTP array enables secure key storage
  • Octal interface delivers fast data transfer
  • High-speed SDR/DDR supports demanding systems
  • DS simplifies high-speed system design
  • Functional safety for automotive/industrial
  • Wear leveling extends flash lifetime
  • CRC ensures reliable data transfer
  • ECC enhances data reliability and safety
  • Multi-level protection guards data and config
