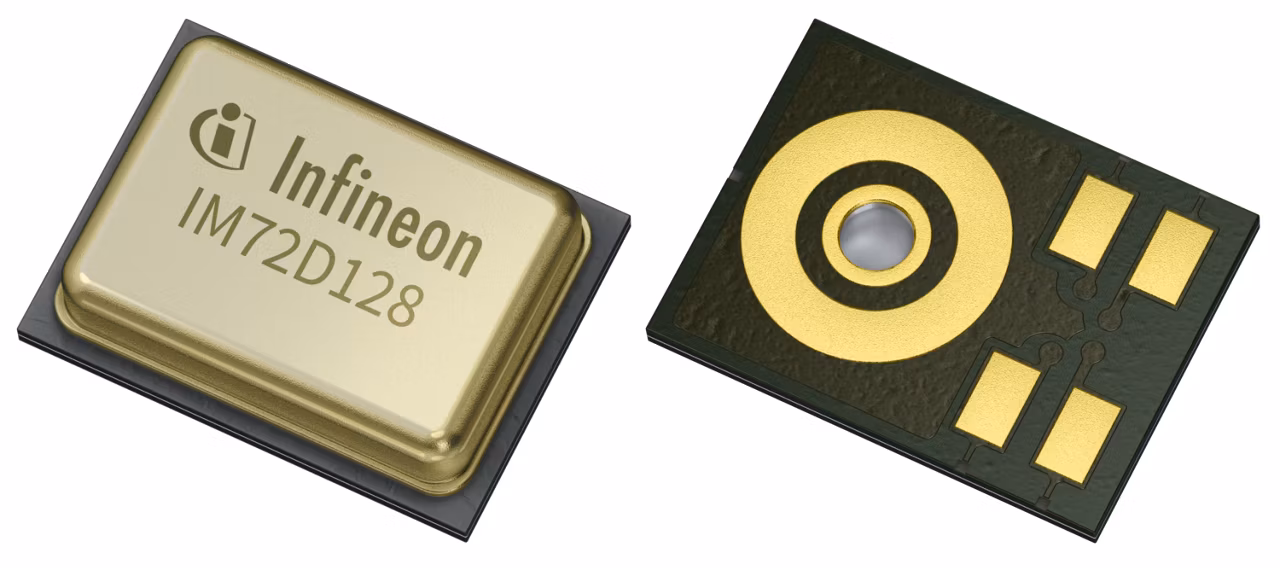

IM72D128
  • IM72D128

IM72D128

Active and preferred

The IM72D128V01 is an ultra-high performance digital microphone designed for applications requiring high SNR and low distortions. Based on Infineon's Sealed Dual Membrane (SDM) MEMS technology, it delivers high IP57 ingress protection. The flat frequency response and tight manufacturing tolerance improve multi-microphone (array) applications.

Infineon Technologies IM72D128 Product Info

16 April 2026 0

Parameters

AEC-Q103-003 qualified

on demand

AOP

128 dBSPL

Current Consumption

980 µA

Green

RoHS compliant, Halogen free

Interfaces

Digital PDM

LFRO

20 Hz

Package dimensions

4.00 x 3.00 x 1.20 mm³

Sensitivity

-36 dBFS

SNR

72 dB(A)

Supply Voltage

1.62 - 3.60 V

Apps

Consumer electronics, Semiconductor solutions for home entertainment applications, Smart speaker designs, Smart conference systems, Home and building automation

Features

  • Ultra-low self-noise / ultra-high SNR (72dB)
  • Selectable power modes for battery critical applications (980/280µA)
  • Sealed Dual Membrane (SDM) technology with IP57 ingress protection at microphone level
  • Ultra-high dynamic range and high acoustic overload point (AOP) of 128dBSPL
  • Very tight part-to-part phase and sensitivity matching (± 1dB)
  • Flat frequency response with a very low LFRO (low frequency roll-off) of 20Hz
  • Very low group delay (7µs @ 1kHz)

Description

  • Crystal clear audio pick up of the quietest and the loudest sounds
  • High ingress protection (IP57) at a microphone level
  • Enablement of advanced audio features (ANC, transparent hearing, audio zoom, beamforming)
