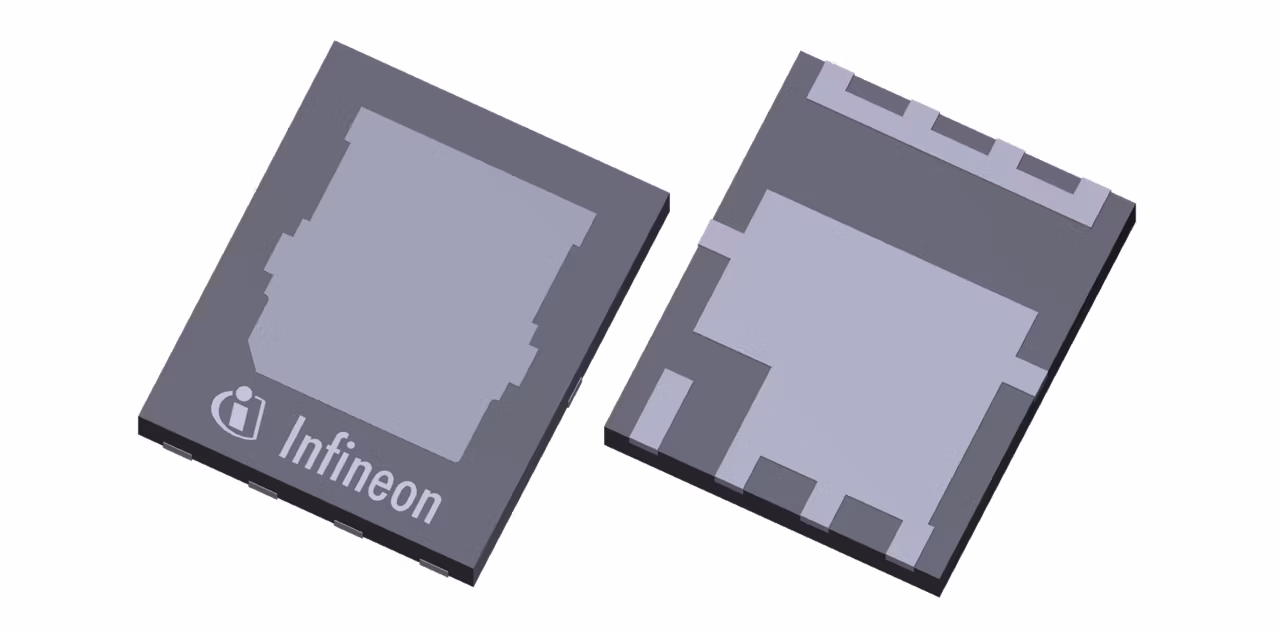

IQD005N04NM6SC
  • IQD005N04NM6SC

IQD005N04NM6SC

Active and preferred

The power MOSFET IQD005N04NM6SC comes with a low RDS(on) of 0,47 mOhm combined with outstanding thermal performance for easy power loss management. Moreover, with the dual-side cooling package five times more power can be dissipated compared to the overmolded package. This enables higher system efficiency and power density for a large variety of end applications.

Infineon Technologies IQD005N04NM6SC Product Info

16 April 2026 0

Parameters

ID (@25°C) max

597 A

Operating Temperature range

-55 °C to 175 °C

Package

PQFN 5x6 Source-Down

Polarity

N

QG (typ @10V)

130 nC

RDS (on) (@10V) max

0.49 mΩ

Special Features

Dual-Side Cooling

VDS max

40 V

VGS(th) range

1.8 V to 2.8 V

VGS(th)

2.3 V

Apps

Automotive BMS, Power tools, Battery formation and testing, Low-voltage drives, Power conversion

Features

  • Cutting edge 40 V silicon technology
  • Outstanding FOMs
  • Improved thermal performance
  • Ultra-low parasitics
  • Maximized chip/package ratio

Description

  • Minimized conduction losses
  • Reduced voltage overshoot
  • Increased maximum current capability
  • Fast switching
  • Less device paralleling required
  • Lowest RDS(on) on a 5x6 footprint
  • Improved thermal performance
  • Easy thermal management
  • Best switching performance
  • Industry-standard package
