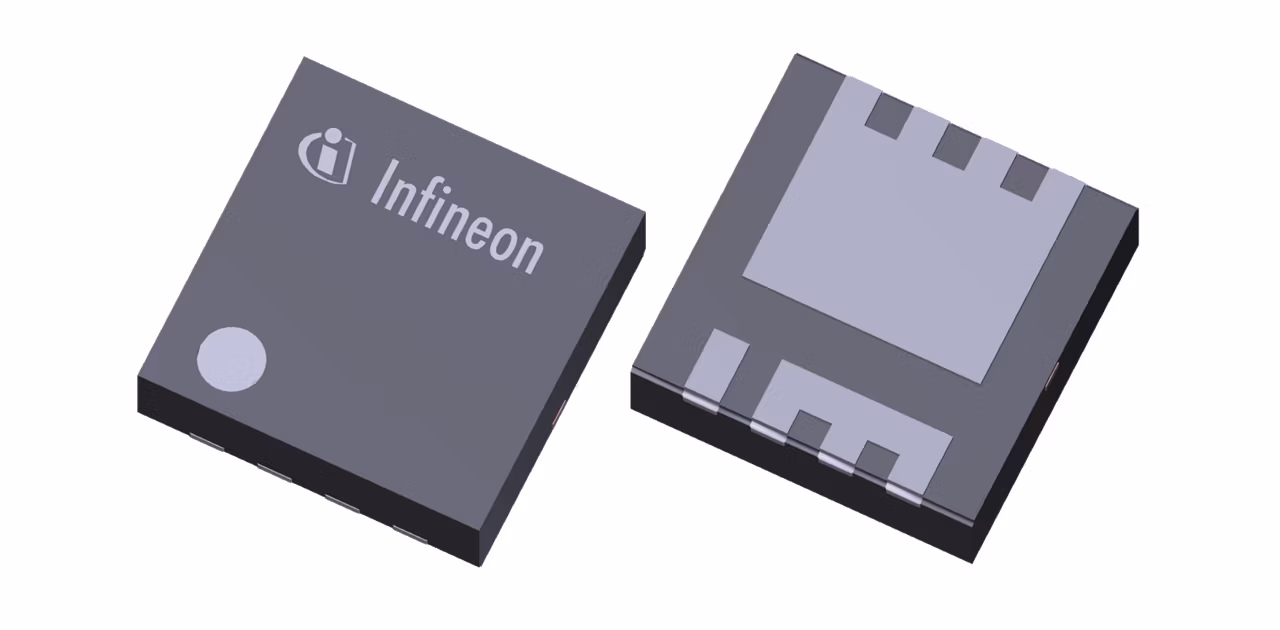

IPZ40N04S5L-4R8

Infineon Technologies IPZ40N04S5L-4R8 Product Info

16 April 2026 0

Budgetary Price €/1k	0.27
Country of Assembly (Last BE site, current, subject to change)	Malaysia
Country of Diffusion (Last FE site, current, subject to change)	Austria, Germany
ID (@25°C) max	40 A
IDpuls max	160 A
Launch year	2015
Operating Temperature range	-55 °C to 175 °C
Package	S3O8 (PG-TSDSON-8-32)
Planned to be available until at least	2029
Polarity	N
Ptot max	48 W
QG (typ @10V) max	29 nC
QG (typ @10V)	22 nC
Qualification	Automotive
RDS (on) (@10V) max	4.8 mΩ
RthJC max	3.1 K/W
Technology	OptiMOS™5
VDS max	40 V
VGS(th) range	1.2 V to 2 V
VGS(th)	1.6 V

Domain controller for ADAS & autonomous driving, Automotive body electronics & power distribution, Electric vehicle drivetrain system
