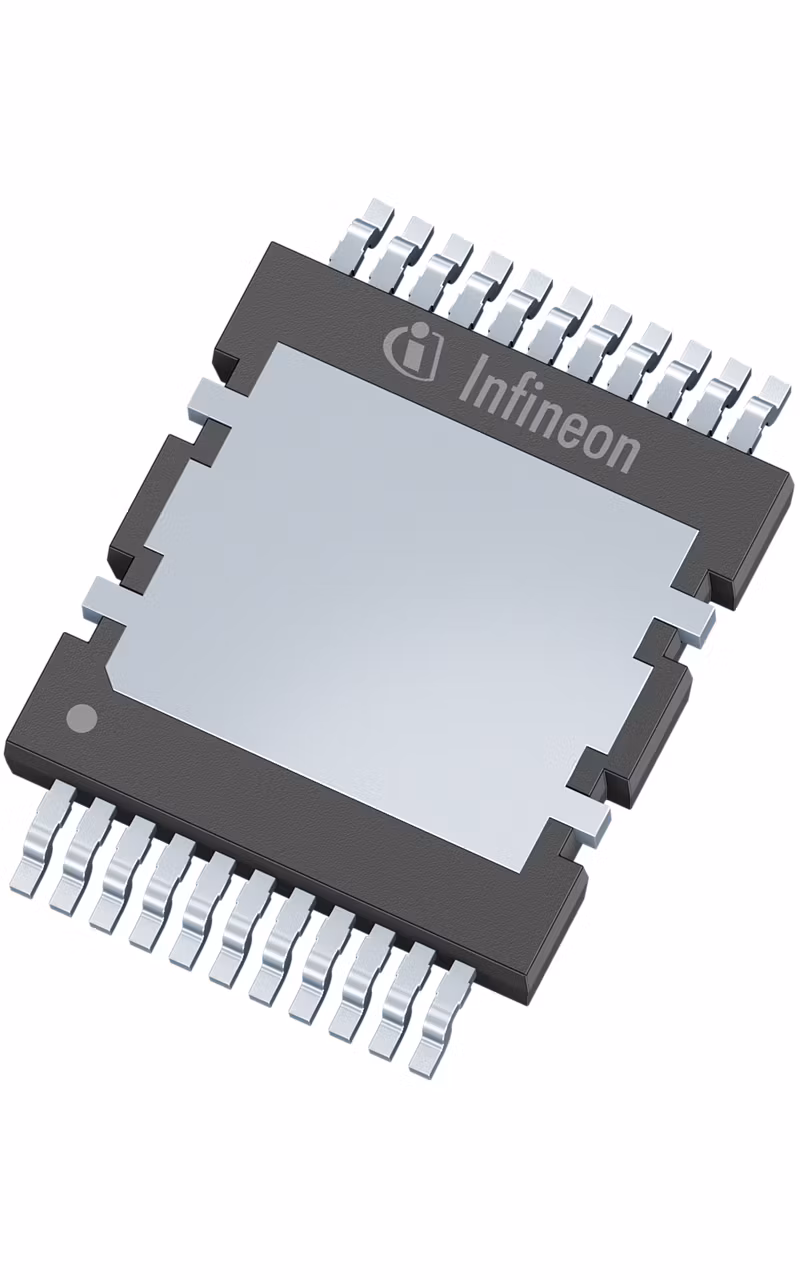

IPDQ60R040S7A
  • IPDQ60R040S7A

IPDQ60R040S7A

Active and preferred

The automotive qualified AEC-Q101, 600 V CoolMOS™ S7A SJ MOSFET family is optimized to offer low conduction losses and features the lowest RDS(on) in the market when it comes to high-voltage SJ MOSFETs. It comes with an unprecedented RDS(on) x price figure of merit and is a perfect fit for HV eFuse, HV eDisconnect and on-board charger PFC stage in an active line configuration.

Infineon Technologies IPDQ60R040S7A Product Info

16 April 2026 0

Parameters

ID max

14 A

IDpuls max

207 A

Mounting

SMT

Operating Temperature range

-40 °C to 150 °C

Package

Q-DPAK

Polarity

N

Ptot max

272 W

QG

83 nC

QG (typ @10V)

83 nC

RDS (on) (@ Tj = 25°C) max

40 mΩ

RDS (on) (@ Tj = 25°C)

36 mΩ

Special Features

Slow switching

Technology

CoolMOS™ S7A

VDS max

600 V

VGS(th) range

3.5 V to 4.5 V

VGS(th)

4 V

Features

  • CoolMOS™ 7 series
  • improved Ron * A

Description

  • Minimal conduction losses
  • Increases energy efficiency
  • More compact and easier designs
  • Lower TCO or BOM Cost
