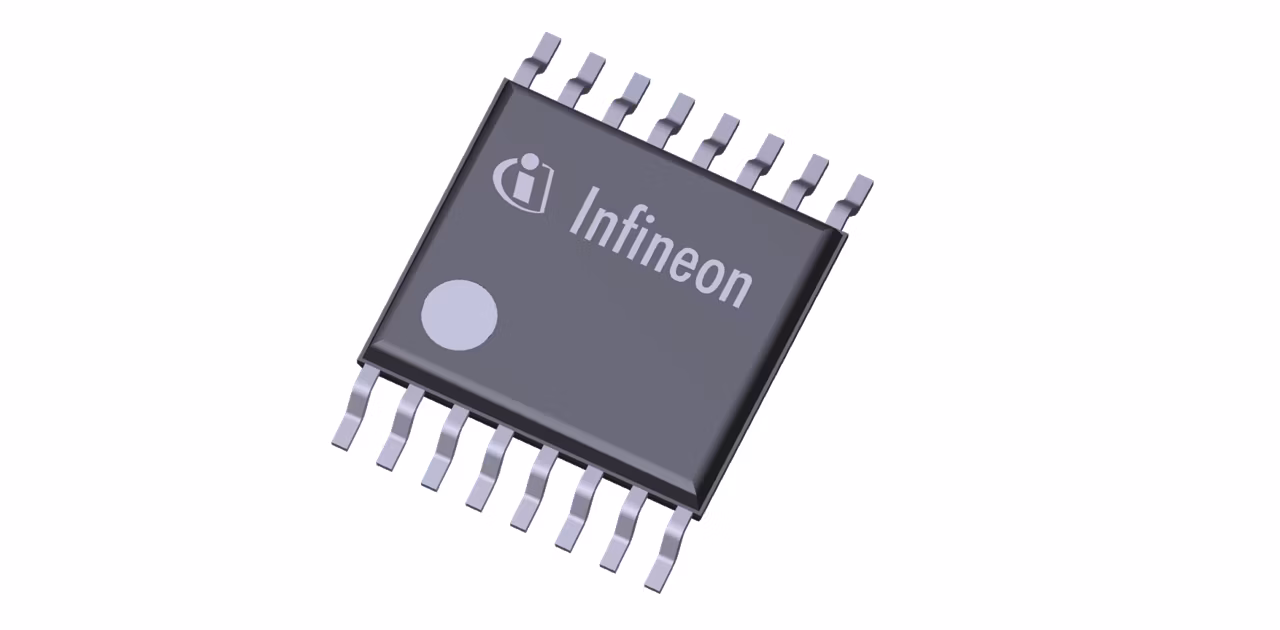

XMC1301-T016F0032 AB
  • XMC1301-T016F0032 AB

XMC1301-T016F0032 AB

Active and preferred

The XMC1300 series belongs to the XMC1000 Family of industrial microcontrollers which are based on the ARM® Cortex®-M0 processor core. The XMC1300 series devices are the perfect choice for applications like digital power conversion and motor control. They integrate dedicated peripherals for Field Oriented Control (FOC), brushless (BLDC), brushed DC and PMSM motors and are supported with a development environment enabling short time-to market.

Infineon Technologies XMC1301-T016F0032 AB Product Info

16 April 2026 0

Parameters

A/D Input Lines (incl. FADC)

6

Additional Features

Temp. Sensor, 2x ACMP, POSIF, Special purpose timer CCU8

Budgetary Price €/1k

0.97

CPU

ARM Cortex-M0

Digital I/O Pins

14

DMA Channels

0

EEPROM Emulation (Data-Flash)

Emulated

External Bus Interface

No

Family

XMC1300

Fast Flash Programming

No

Flash

32 kByte

Floating Point Unit

No

Frequency max

32 MHz

I/O Operation Voltages

5.5 V, 1.8 V

Instruction Width ([bits])

32/16

Number of ADC Modules

2

On-chip Clock Generation

Yes

On-chip Voltage Regulator

Yes

Oscillator Watchdog

Yes

Power Mode

clock gating possible

Program Memory

32 kByte

Qualification

Industrial

Real Time Clock

Yes

Secondary Core

N/A

Serial I/O Interfaces

2

SRAM (incl. Cache)

16 kByte

SRAM

16 kByte

Timed I/O Pins (PWM, CAPCOM)

12

Timer/Counter

8

Touch/LED Matrix Control

No

Type of Memory

Flash

Type of Serial I/O Interfaces

UART, SPI, I²C, I²S

Watchdog Timer

Yes

Apps

EV charging, Identity and access management

Features

  • 32 MHz core / 64 MHz peripheral clock
  • Operating range 1.8 - 5.5 V, -40 - 85°C
  • 32KB Flash (ECC), 16KB RAM (parity)
  • 12-bit ADC, 1 Ms/s, 6 inputs, 2x S&H
  • 3x analog comparator, 30ns
  • 8 x 16-bit capture, compare, PWM timers
  • Hall sensor / encoder interface
  • 2 serial channel, SPI, UART, I2C, LIN
  • Real Time Clock, watchdog, PRNG
  • TSSOP-16, 5x4.4 mm², 0.65mm pitch, 14 IO
