IDK10G120C5

Active and preferred

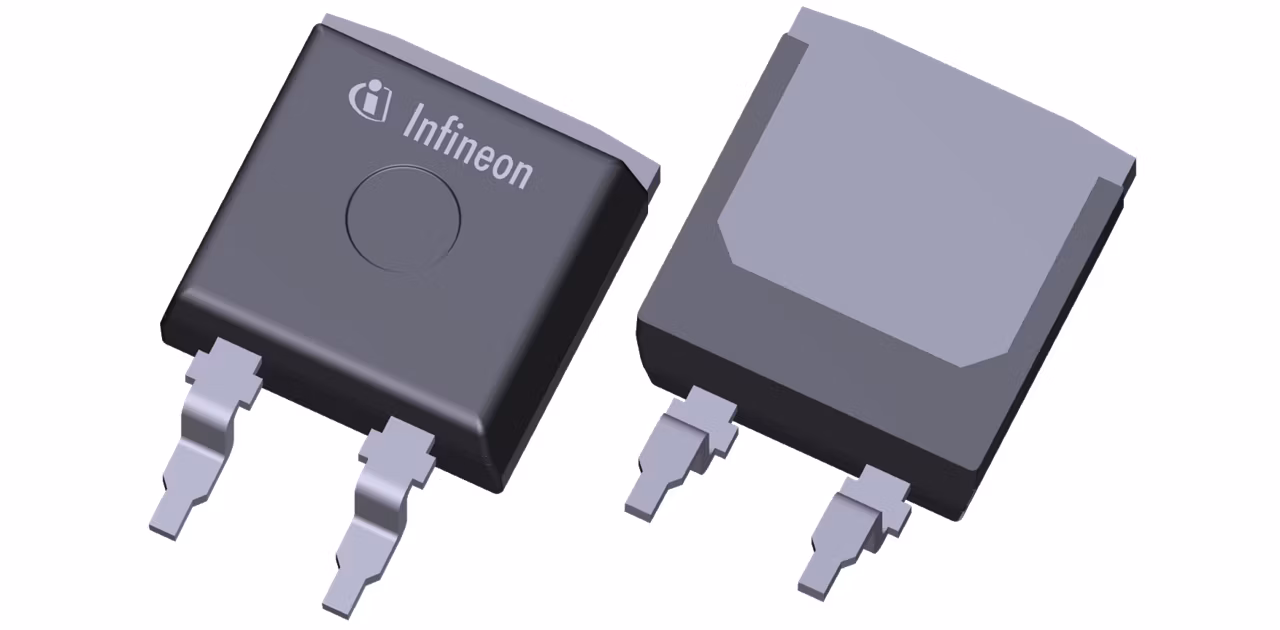

The CoolSiC™ Schottky diodes generation 5 1200 V, 10 A is now available in a D2PAK real 2-pin package. Connecting SiC diodes in parallel and in a small device package, a high efficient system can be achieved while minimizing board space requirement. The elimination of the middle pin reduces a risk of partial discharge at high voltage and high frequency operation.

Infineon Technologies IDK10G120C5 Product Info

16 April 2026 0

Parameters

I(FSM) max	99 A
IF max	10 A
IR	4 A
Package	PG-TO263-2 (D2PAK)
Ptot max	165 W
QC	41 nC
Qualification	Industrial
RthJC	0.7 K/W
VF	1.5 V

Apps

Medium voltage IBC (48 V), DIN rail power supply solutions, Photovoltaic, Mobile robots (AGV, AMR), Motor control, Power conversion, Uninterruptible power supplies (UPS)

Features

Zero Qrr
No reverse recovery losses
High surge current capability
Tight forward voltage distribution
Temp.-independ. switching behavior
Low forward voltage*
*even at high operating temperature
Real two-pin package
4.7 mm creepage distances
4.4 mm clearance distances
