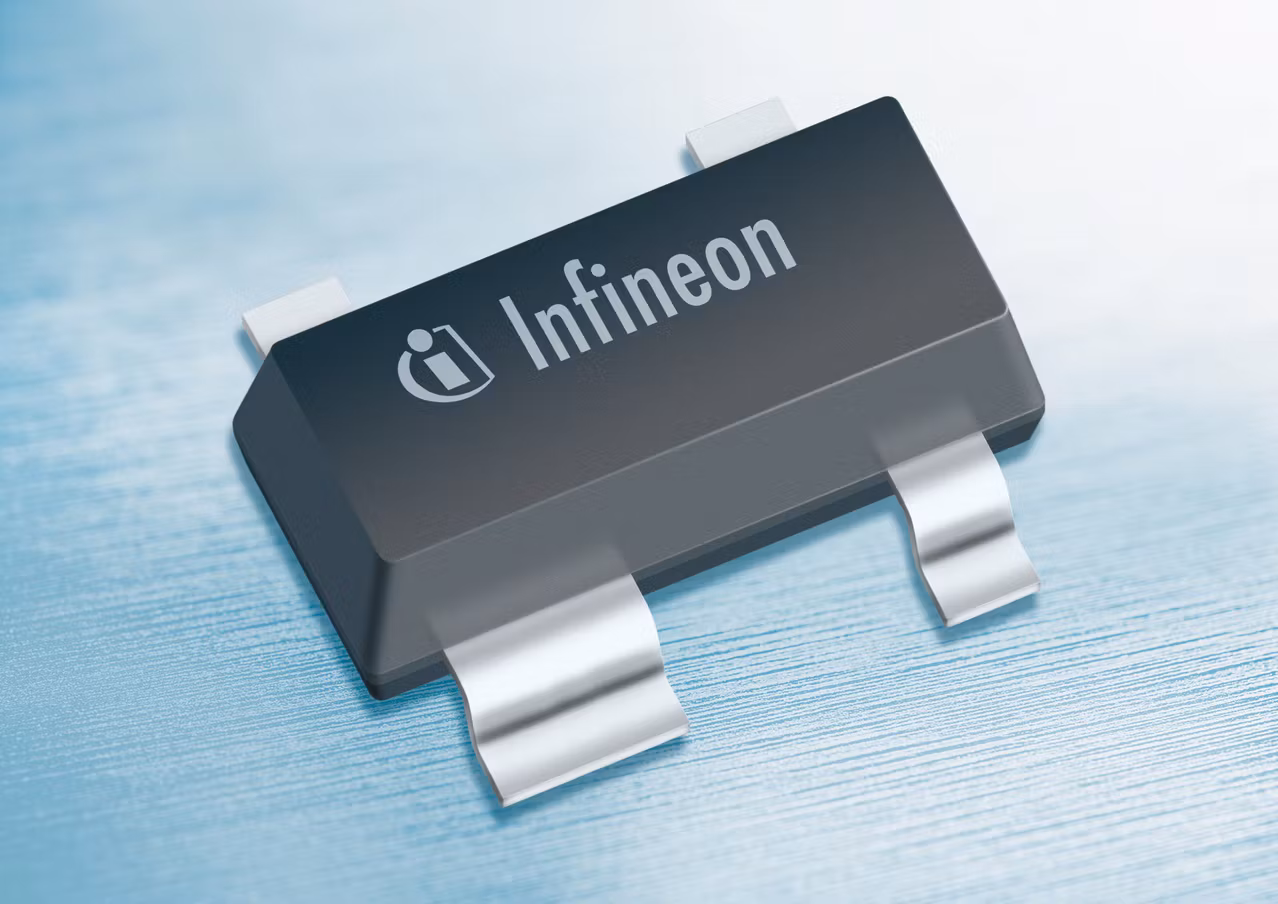

DSL70
  • DSL70

DSL70

Silicon TVS diodes Array

Infineon Technologies DSL70 Product Info

16 April 2026 1

Parameters

CL max

5 pF

CL

2.5 pF

Configuration

unidirectional

IEFT

80A

IPP

27A

IR

5 nA

IR max

5 µA

Protected Lines

2

Rdyn (reverse)

0.1 Ω

Vcl typ. reverse (TLP 30A)

4V+Vcc

Vcl typ. reverse (TLP 16A)

2.6V+Vcc

Vcl typ. reverse (@16A)

2.6 V

VESD range

-15 kV to 15 kV

VWM

50 V

Features

  •  ESD / transient protection of e.g. ADSL, VDSL,ISDN, WAN, LAN, I²C Bus, Microcontroller Inputs,Video and other high-speed data lines in telecom applications:IEC61000-4-2 (ESD): ± 15 kV (Air / Contact),IEC61000-4-4 (EFT): 4 kV / 80 A (5/50 ns),IEC61000-4-5 (Lightning): 27 A (8/20 μs)
  • Very low capacitance
  • Extremely low reverse current < 5 nA
  • Pb-free (RoHS compliant) package
