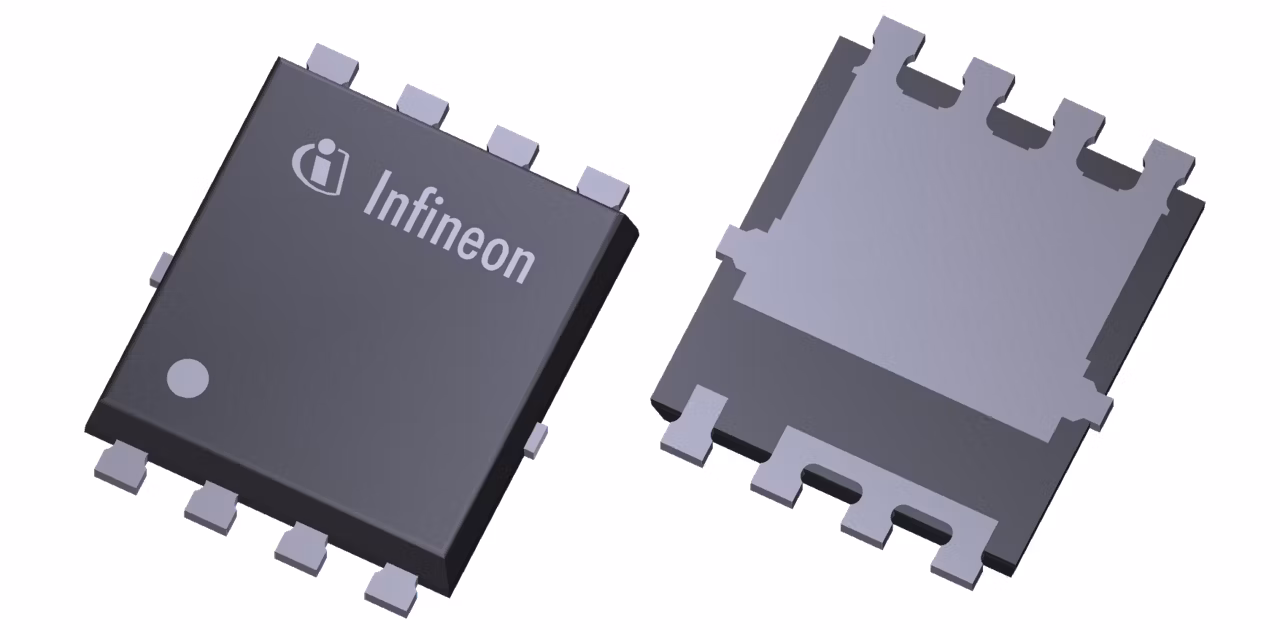

IAUCN04S7N004
  • IAUCN04S7N004

IAUCN04S7N004

Active and preferred

A portfolio of 16 products (RDS(on)max from 0.4 mΩ to 3.0 mΩ which enables the best product fit in the applications. All of this enables the Best-in-Class product FOM (RDS(on)x Qg) and performance on the market.

Infineon Technologies IAUCN04S7N004 Product Info

16 April 2026 16

Parameters

Country of Assembly (Last BE site, current, subject to change)

Malaysia

Country of Diffusion (Last FE site, current, subject to change)

Austria, Germany

ID (@25°C) max

175 A

Launch year

2023

Operating Temperature range

-55 °C to 175 °C

Package

PG-TDSON-8

Planned to be available until at least

2038

Polarity

N

QG (typ @10V) max

169 nC

QG (typ @10V)

130 nC

Qualification

Automotive

RDS (on) (@10V) max

0.44 mΩ

Technology

OptiMOS™7

VDS max

40 V

VGS(th) range

2.2 V to 3 V

VGS(th)

2.6 V

Features

  • Very low Ron*A
  • High Avalanche capability
  • High SOA ruggedness
  • Fast switching times (turn on/off)
  • N-channel–Enhancement mode–Normal Level
  • Extended qualification beyond AEC-Q101
  • Enhanced electrical testing
  • Robust design
  • MSL1 up to 260°C peak reflow
  • 175°C operating temperature
  • Low package resistance and inductance
  • PPAP Capable Device

Description

  • High power efficiency
  • Increased design ruggedness
  • Optimized switching performance
  • Small footprint & efficient cooling
  • High quality product design
  • High quality FE&BE production
  • Excellent thermal performance
