FF2MR12W3M1H_B11

Active and preferred

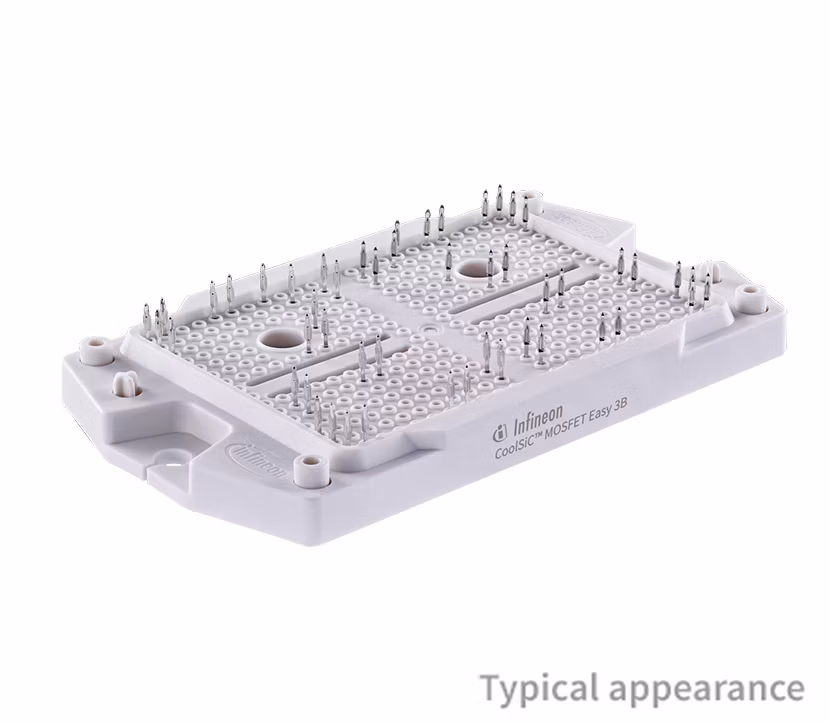

EasyDUAL™ 3B 1200 V / 1.44 mΩ half-bridge module with CoolSiC™ MOSFET with enhanced generation 1, integrated NTC temperature sensor and PressFIT Contact Technology .

Infineon Technologies FF2MR12W3M1H_B11 Product Info

16 April 2026 0

Parameters

Applications	UPS,Solar,Servo drives,Traction,ESS,CAV,FuelCell
Configuration	Half-bridge
Dimensions (width)	62 mm
Dimensions (length)	109.85 mm
Features	PressFIT
Housing	Easy 3B
Qualification	Industrial
RDS (on) (@ Tj = 25°C)	1.44 mΩ

Apps

Battery energy storage (BESS), Servo motor drive and control, Medium voltage (MV) drive, Traction, Photovoltaic, Power conversion, Offline UPS - high frequency transformer

Features

Best-in-class package: 12 mm height
Easy module packages
Very low module stray inductance
Low and equal gate inductances
Symmetrical internal chip layouts
Wide RBSOA
1200 V CoolSiC™ MOSFET
Gate drive vol.: +15…+18 V & 0…-5 V
Max. gate-source v.: +23 V & -10 V
T_vjop under overload condi. < 175°C
PressFIT pins
