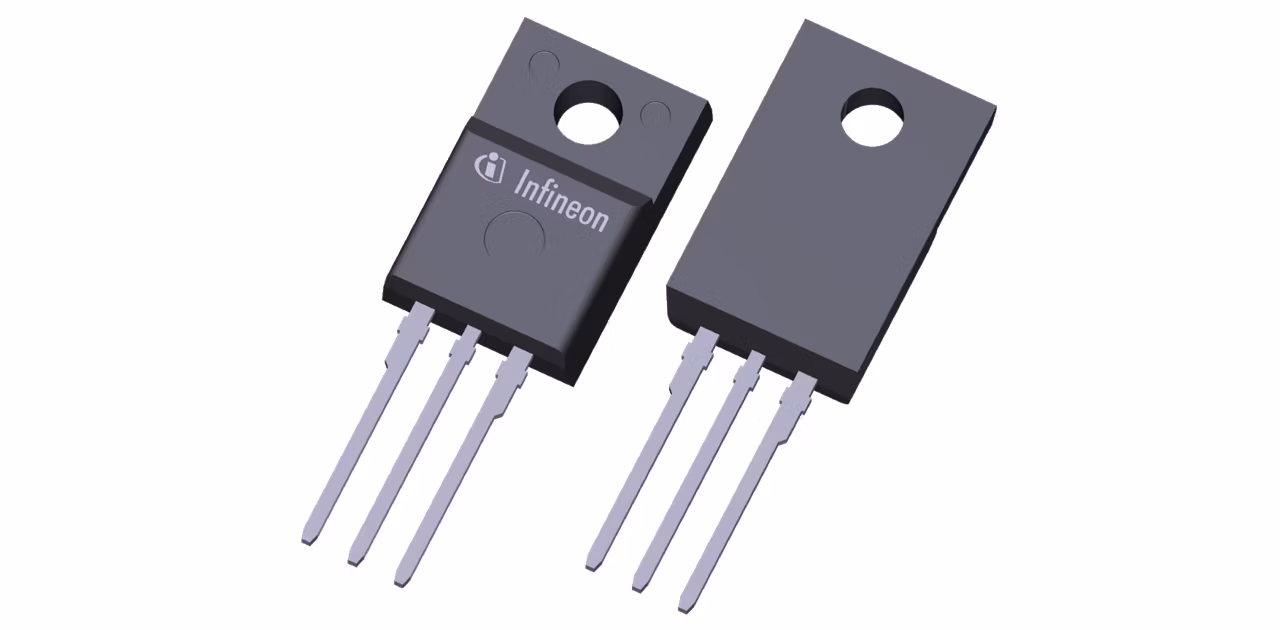

IPA093N06N3 G
  • IPA093N06N3 G

IPA093N06N3 G

OptiMOS™ 60V is a perfect choice for synchronous rectification in switched mode power supplies (SMPS) such as those found in servers and desktops and tablet charger. In addition these devices can be used for a broad range of industrial applications including motor control, solar micro inverter and fast switching DC-DC converter.

Infineon Technologies IPA093N06N3 G Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.48

Ciss

2900 pF

Coss

640 pF

ID (@25°C) max

43 A

IDpuls max

172 A

Operating Temperature range

-55 °C to 175 °C

Package

TO-220 FullPAK

Polarity

N

Ptot max

33 W

QG (typ @10V)

36 nC

RDS (on) (@10V) max

9.3 mΩ

Rth

4.6 K/W

VDS max

60 V

VGS(th) range

2 V to 4 V

VGS(th)

3 V

Features

  • Excellent gate charge x RDS(on) product (FOM)
  • Very low on-resistance RDS(on)
  • Ideal for fast switching applications
  • RoHS compliant - halogen free
  • MSL1 rated

Description

  • Highest system efficiency
  • Less paralleling required
  • Increased power density
  • System cost reduction
  • Very low voltage overshoot
